Tutorial

Walk through your first vault, service, and agent end to end.

This tutorial takes you from a freshly deployed Agent Vault instance to a Claude Code session making authenticated calls through Agent Vault. Agent Vault and Claude Code should run on two different machines on the same private network.

By the end, you’ll have:

1. An Agent Vault instance set up with credentials and credential brokering rules for the services your agent needs to reach.
2. A Claude Code agent proxying its requests through Agent Vault, making authenticated requests to GitHub without holding any real credentials. This, by the way, works with any other agent (OpenCode, OpenClaw, Hermes Agent, custom agents, etc.) and even traditional deterministic workloads.

Prerequisites

• An Agent Vault server installed and running on a separate host from where the agent will run, and reachable over the same network.
• An API key to broker for Claude Code. This tutorial uses a GitHub personal access token (PAT), invoked via the GitHub CLI, but this could be any credential and tool combination.

Steps 1–5 all happen in the Agent Vault web UI at http://<your-host>:14321. Step 6 runs the agent on the agent host.

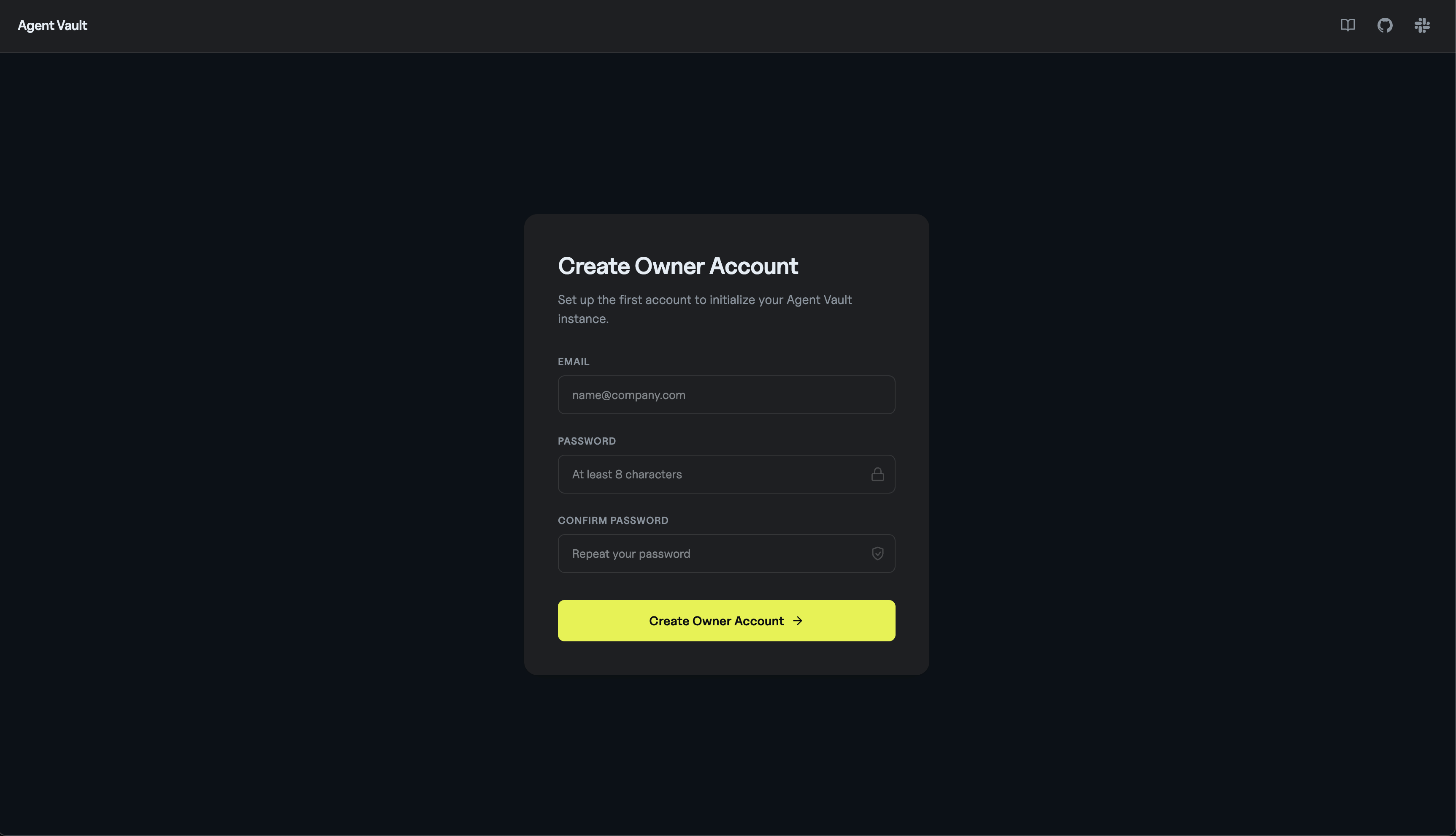

1. Register the instance owner

Open http://<your-host>:14321/register in a browser and create your account. The first user to register becomes the instance owner and is auto-granted admin on the default vault.

After registering, you land in the dashboard signed in as the owner.

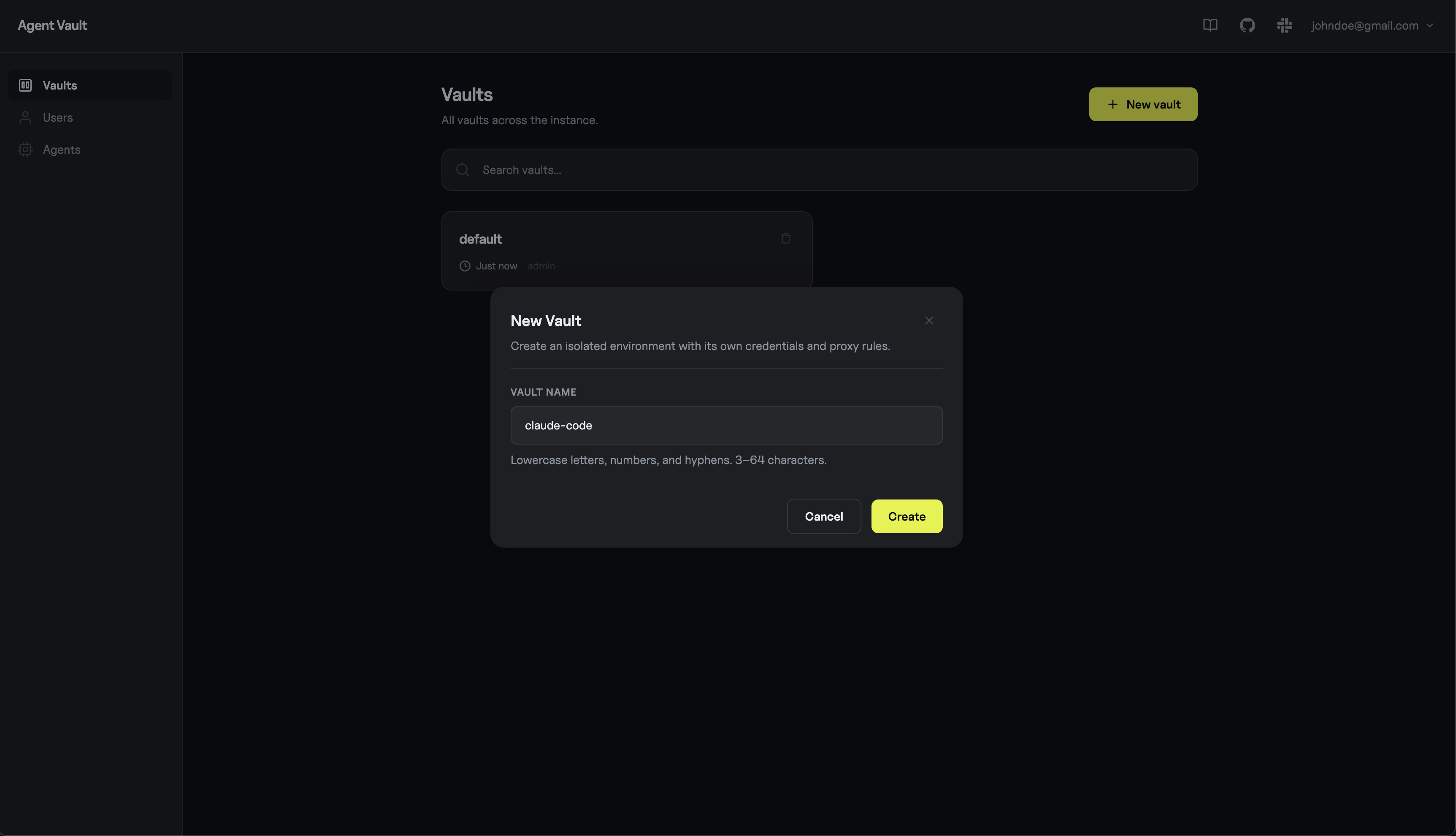

2. Create a vault

A vault is the logical container for credentials, services, and the agents allowed to use them. The default vault is fine for testing, but we’ll create a dedicated one to mirror real usage.

In the sidebar, open Vaults and click New vault. Name it claude-code and create it.

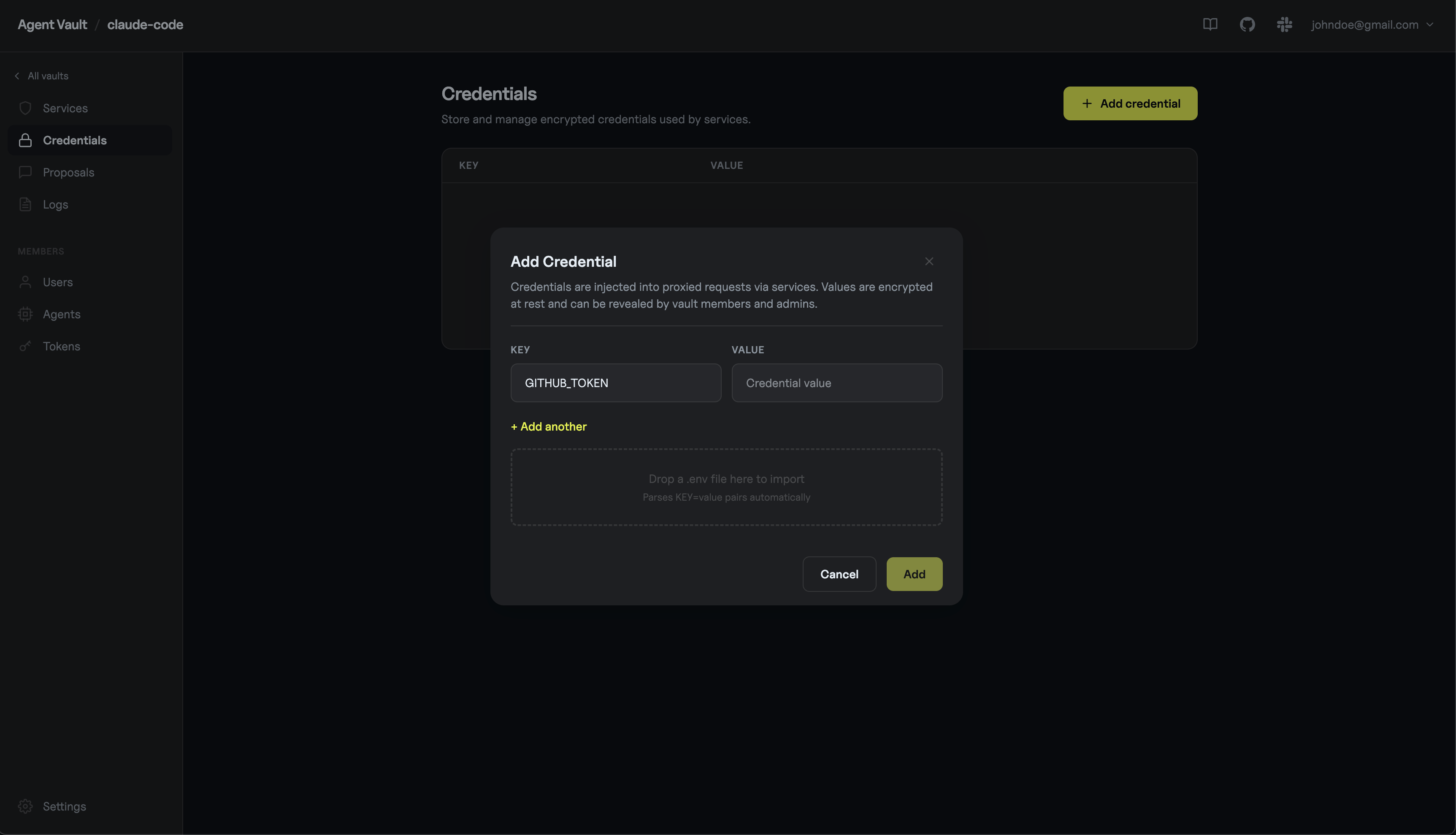

3. Add a credential

Open the claude-code vault and go to the Credentials tab. Click Add credential and enter:

• Key: GITHUB_TOKEN
• Value: your GitHub PAT (ghp_...)

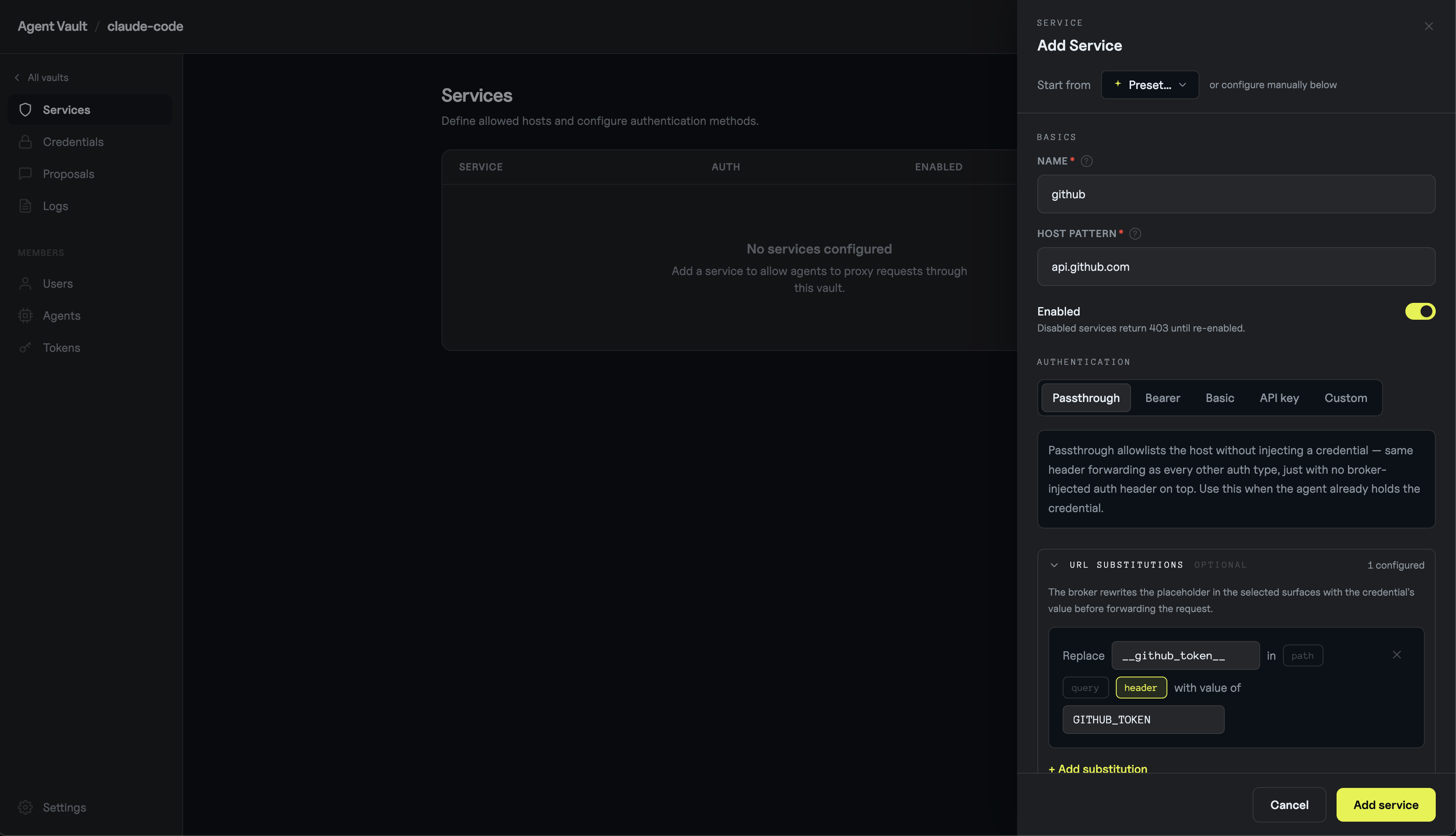

4. Define a service

A service tells Agent Vault which upstream host the agent can reach and how to wire the credential in. For this tutorial we’ll use the passthrough + substitution pattern: Agent Vault doesn’t pick an auth header for you, it just swaps a placeholder string the agent sends for the real credential.

In the same vault, go to the Services tab, click Add service, and enter:

• Name: github
• Host: api.github.com
• Auth type: passthrough
• Substitution:
  • Key: GITHUB_TOKEN
  • Placeholder: __github_token__
  • In: header

Save the service. Now any request to api.github.com that includes the literal string __github_token__ in a header gets that placeholder swapped for the real credential before being forwarded upstream.

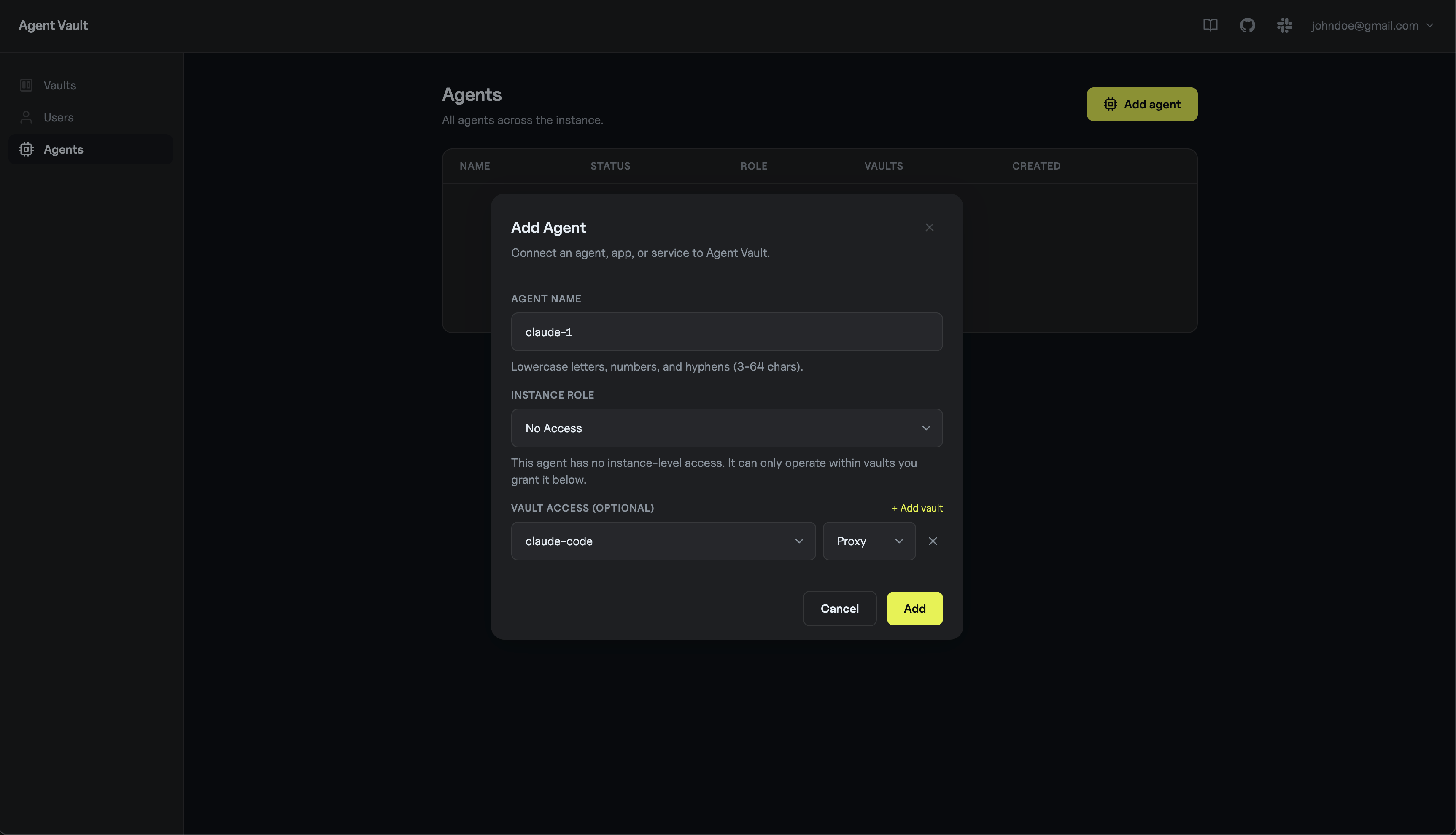

5. Create an agent

In the sidebar, open Agents and click Add agent. Name it claude-1 and grant it the proxy role on the claude-code vault.

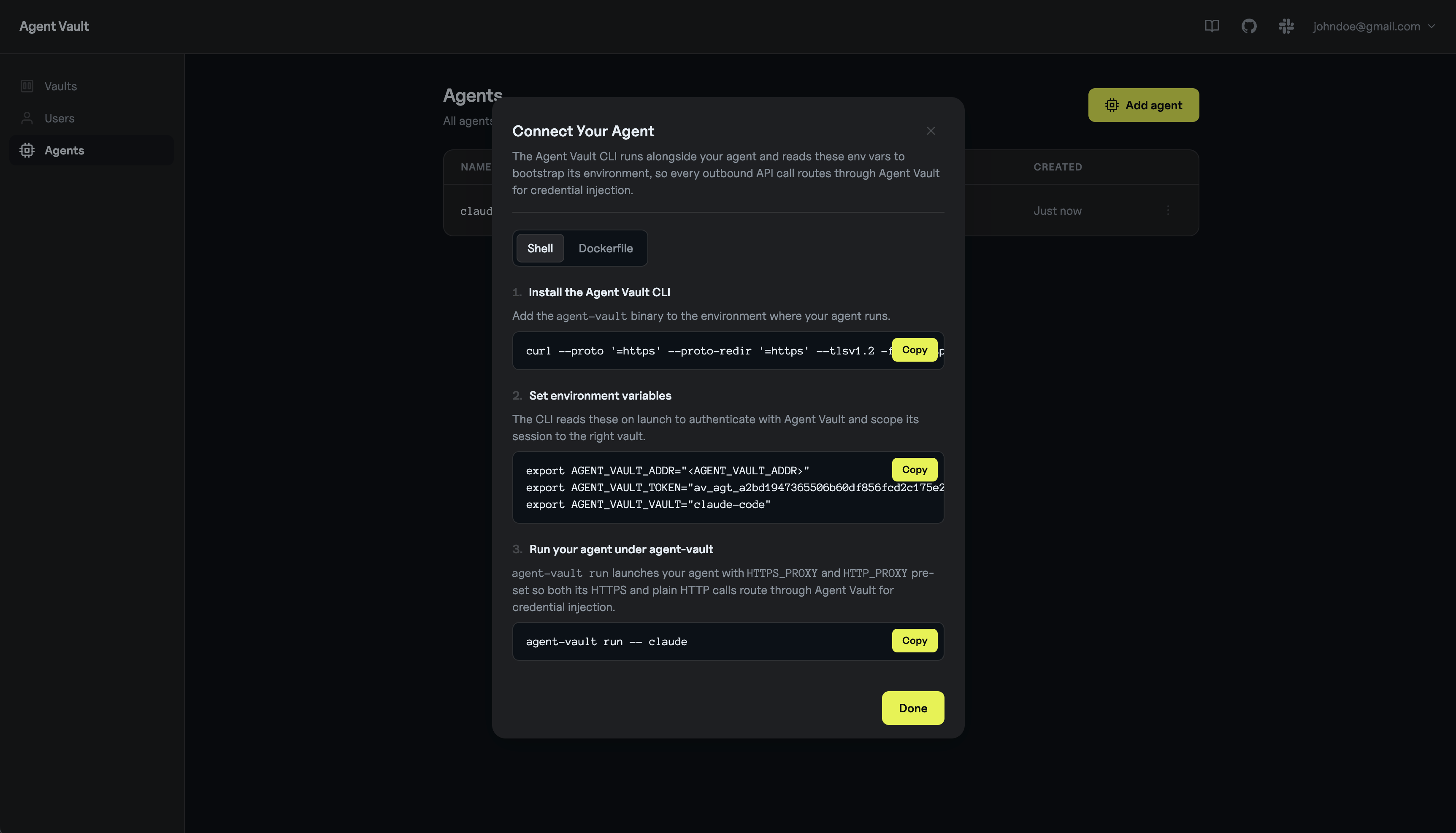

After creating the agent, Agent Vault shows a ready-to-copy block of the three env vars you’ll need on the agent host. Copy it; the token is only displayed this once.

6. Run Claude Code through Agent Vault

Everything else happens on the agent host (the machine where Claude Code runs, separate from the Agent Vault server). Pick the flavor that matches your setup.

Shell

Install the Agent Vault CLI:

curl --proto '=https' --proto-redir '=https' --tlsv1.2 -fsSL https://get.agent-vault.dev | sh

Install the GitHub CLI so Claude Code has a tool to talk to GitHub with.

Set the three Agent Vault env vars (paste the block from step 5) plus GH_TOKEN with the substitution placeholder, then wrap Claude Code with agent-vault run:

export AGENT_VAULT_ADDR="http://<your-host>:14321"
export AGENT_VAULT_TOKEN="av_agt_..."   # the token from step 5
export AGENT_VAULT_VAULT="claude-code"
export GH_TOKEN="__github_token__"      # placeholder to be swapped for the real credential by Agent Vault

agent-vault run -- claude

Dockerfile

Add the Agent Vault binary to your agent’s image and make sure gh is also installed (see GitHub CLI install for your base image), then set the entrypoint:

COPY --from=infisical/agent-vault:latest /usr/local/bin/agent-vault /usr/local/bin/agent-vault

ENTRYPOINT ["agent-vault", "run", "--", "claude"]

Pass the env vars at runtime so the token never gets baked into the image:

docker run --rm -it \
  -e AGENT_VAULT_ADDR="http://<your-host>:14321" \
  -e AGENT_VAULT_TOKEN="av_agt_..." \
  -e AGENT_VAULT_VAULT="claude-code" \
  -e GH_TOKEN="__github_token__" \
  your-image

The agent-vault run command bootstraps the agent’s environment so that API calls, including those invoked via CLI/SDK/MCP, get routed through Agent Vault.

Inside the Claude Code session, ask it to use gh. For example:

List my 3 most recently updated GitHub repos using the GitHub CLI (gh).

Claude Code should use the GitHub CLI to fetch your repos and print them back. Agent Vault holds the real PAT the entire time; Claude Code and gh only ever see the placeholder.

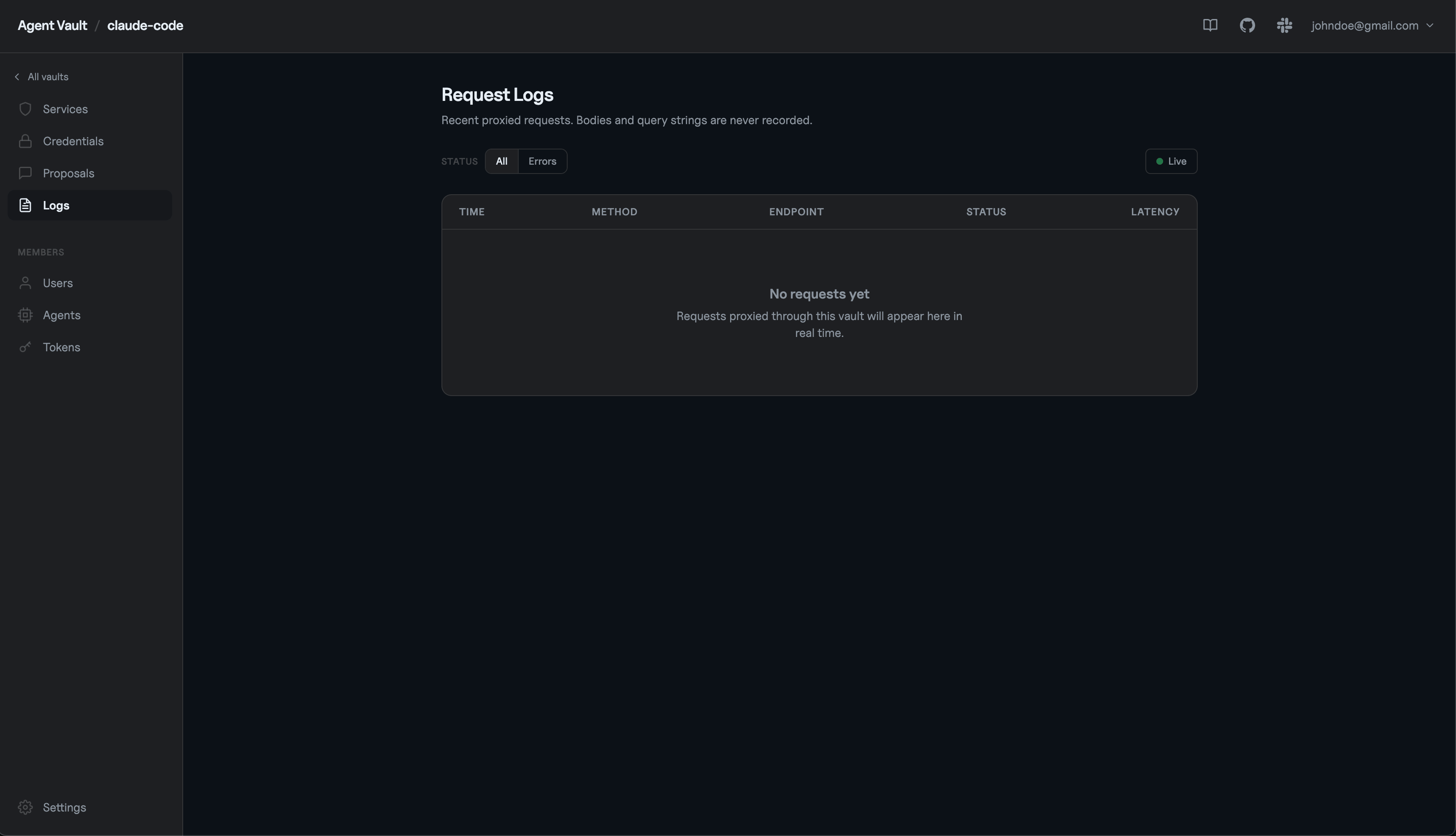

7. (Optional) View the request in Agent Vault

Back in the web UI, open the claude-code vault and click the Logs tab.

You should see the request the agent just made to api.github.com, including the method, path, response status, and which service matched.
