Run OpenClaw on a VPS

Keep real credentials off the agent host by routing every outbound call through Agent Vault on a separate VPS.

Provision two DigitalOcean droplets, install Agent Vault on one and OpenClaw on the other, and broker every outbound call through Agent Vault. Plan for 45–60 minutes and ~$12/month.

By the end, you’ll have:

1. Agent Vault running on one droplet, holding real Anthropic, GitHub, Notion, and Slack credentials encrypted at rest behind a master password.
2. An OpenClaw gateway running on a second droplet, reachable via a Slack bot, with every outbound API call brokered through Agent Vault and revocable from the UI in one click.

Companion video for this guide: a full end-to-end walkthrough from two empty droplets to a brokered, Slack-reachable OpenClaw gateway. Watch below or open on YouTube.

Prerequisites

• A DigitalOcean account.
• API keys for the services you want OpenClaw to call. This guide uses Anthropic, GitHub, Notion, and Slack.
• A Slack workspace where you can install a custom app.

This guide installs Agent Vault as a native binary via the install script, the path documented in Self-hosting locally. For containers, see Docker self-hosting.

Architecture

+-----------------------------------------------------------------+
| Public internet                                                 |
|                                                                 |
|   api.anthropic.com   api.github.com                            |
|   api.notion.com      slack.com                                 |
|          ^                   ^                                  |
+----------+-------------------+----------------------------------+
           |                   |
           +-------------------+
                               | outbound HTTPS, Agent Vault
                               | injects real credentials here
+------------------------------+----------------------------------+
| Private VPC (10.108.0.0/20, region-scoped)                      |
|                              |                                  |
|  +---------------------------+----+     +--------------------+  |
|  | av-broker  10.108.0.3          |     | openclaw-box       |  |
|  | Agent Vault server             |<----| 10.108.0.2         |  |
|  | :14321  control UI / API       |     | OpenClaw gateway   |  |
|  | :14322  MITM proxy             |     | (placeholders)     |  |
|  | (real credentials, encrypted)  |     |                    |  |
|  +----------------^---------------+     +--------------------+  |
|                   |                                             |
+-------------------+---------------------------------------------+
                    | SSH + tunnel for AV UI from laptop
                    |
                Operator

Only av-broker holds real credentials, encrypted at rest behind your master password. openclaw-box holds placeholder strings (__anthropic_api_key__, etc.) and one revocable agent token.

1. Provision the VPS boxes

1. Generate an SSH key on your laptop

   ssh-keygen -t ed25519 -f ~/.ssh/digital-ocean-1 -C "digital-ocean-1"


   Every ssh command in this guide uses -i ~/.ssh/digital-ocean-1 to pin to this key.

2. Upload the public key to DigitalOcean

   In the DigitalOcean console: Settings → Security → SSH Keys → Add SSH Key. Paste the contents of ~/.ssh/digital-ocean-1.pub, name it (e.g. digital-ocean-1), and save.

3. Create the VPC

   Networking → VPC → Create VPC Network. Pick any region. Both droplets must use the same region. Default IP range is fine.

4. Create av-broker

   Create → Droplets. Set:

   Panel	Setting
   Region	Same region as the VPC
   OS	Ubuntu 24.04 (LTS)
   Droplet type	Basic, Regular ($6/mo, 1GB / 1vCPU is plenty for Agent Vault)
   VPC Network	The VPC you just created
   Authentication	SSH Key, tick digital-ocean-1
   Hostname	av-broker

   Click Create Droplet.

5. Create openclaw-box

   Repeat the previous step with one change:

   • Hostname: openclaw-box

   Same region, VPC, and SSH key.

6. Note the private IPs

   Click each droplet, then Networking. Note the private IPv4 each got from the VPC range. The rest of this guide assumes:

   • av-broker is 10.108.0.3
   • openclaw-box is 10.108.0.2

   Substitute yours into every later command.

7. Verify private connectivity

   From your laptop:

   ssh -i ~/.ssh/digital-ocean-1 root@<av-broker-public-ip>
   ping -c 3 10.108.0.2


   Three replies confirm the VPC is live. Type exit to disconnect.

2. Restrict SSH and broker ports with a cloud firewall

1. Find your laptop's public IPv4

   curl -4 ifconfig.me; echo

2. Create and attach the firewall

   Networking → Firewalls → Create Firewall, name it openclaw-lab. Add three inbound rules:

   Type	Port	Sources
   TCP	22	Your laptop’s public IPv4
   TCP	14321	openclaw-box private IP (10.108.0.2)
   TCP	14322	openclaw-box private IP (10.108.0.2)

   Leave outbound rules empty (DigitalOcean allows all outbound by default).

   Scroll to Apply to Droplets and tick both av-broker and openclaw-box.

If your laptop’s public IP changes (cafe networks, VPNs), update the firewall rule’s source IP for port 22.

3. Install Agent Vault on av-broker

1. SSH into av-broker

   From your laptop:

   ssh -i ~/.ssh/digital-ocean-1 root@<av-broker-public-ip>


   Every command in this section runs on av-broker until you exit.

2. Install Agent Vault

   curl --proto '=https' --proto-redir '=https' --tlsv1.2 -fsSL https://get.agent-vault.dev | sh


   The script detects your architecture, verifies the signed release, and drops the binary at /usr/local/bin/agent-vault.

3. Install tmux

   apt update && apt install -y tmux


   You’ll run Agent Vault inside a tmux session so it survives your SSH disconnect.

4. Launch the server inside tmux

   tmux new -s av
   agent-vault server --host 10.108.0.3 --port 14321 --mitm-port 14322


   --host 10.108.0.3 binds both listeners to the private NIC, keeping Agent Vault unreachable from the public internet.

   First-run prompts: master password, admin email, admin password.

   Detach with Ctrl-B then D. You’ll see [detached from session av] and drop back to your normal shell. The server keeps running inside the tmux session.

5. Verify the server

   curl -sI http://10.108.0.3:14321/health


   Expect HTTP/1.1 200 OK.

On reboot, tmux dies and so does the server. SSH back in, tmux new -s av, restart with the same command, re-enter the master password. For zero-touch restart, set AGENT_VAULT_MASTER_PASSWORD, but note the password then lives in an env file.

4. Configure the vault

1. Open an SSH tunnel

   In a new terminal on your laptop (don’t reuse the one you used to install Agent Vault):

   ssh -i ~/.ssh/digital-ocean-1 -L 14321:10.108.0.3:14321 root@<av-broker-public-ip> -N


   The terminal hangs silently. That’s correct. Leave it running for the rest of the guide. Closing it stops the tunnel and the AV UI goes dark.

   Open http://localhost:14321 in your laptop’s browser and sign in with the admin email and password you set during install.

2. Understand vaults, credentials, and services

   You’ll create one of each. Briefly:

   • A vault is a named isolation boundary. We’ll create prod.
   • A credential is one secret value stored under a name (e.g. ANTHROPIC_API_KEY = sk-ant-...). Encrypted at rest.
   • A service is the wiring for one upstream host: host pattern + auth mode + substitution rules that reference credentials by name.

   Credentials store values. Services define wiring. At request time, Agent Vault matches the service by host, looks up the named credential, and rewrites the wire bytes before forwarding.

3. Create the prod vault

   Vaults → New vault → prod → Create.


4. Add credentials

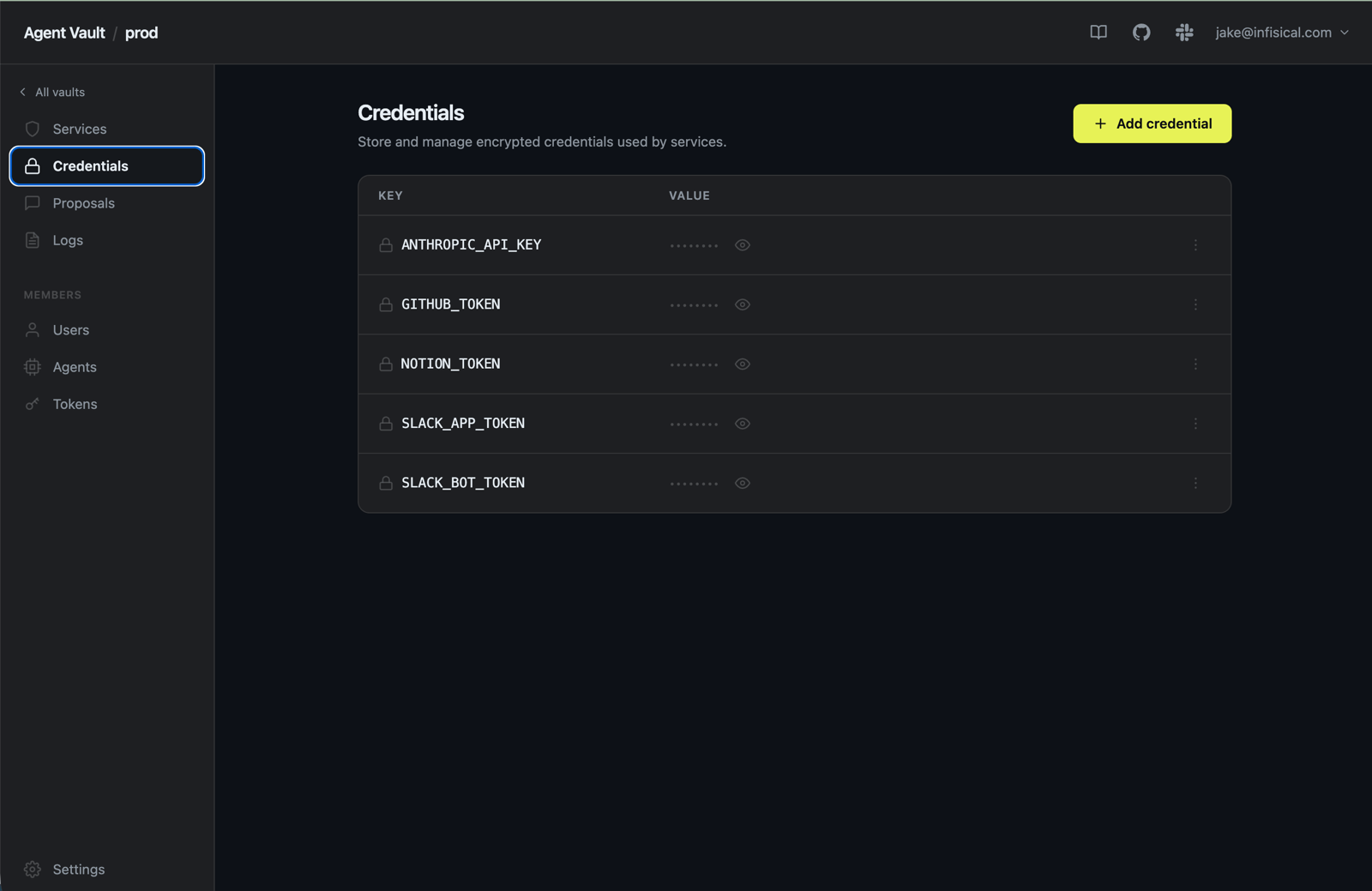

   In the prod vault, Credentials tab → Add credential. Add real tokens for Anthropic, GitHub, and Notion now; the two Slack tokens are placeholders you’ll fill in the next section.

   Key	Value
   ANTHROPIC_API_KEY	Anthropic API key (sk-ant-...)
   GITHUB_TOKEN	GitHub PAT with repo scope (ghp_...)
   NOTION_TOKEN	Notion internal integration token (ntn_...)
   SLACK_BOT_TOKEN	Placeholder; you create the Slack app in the next section
   SLACK_APP_TOKEN	Placeholder; you create the Slack app in the next section


5. Add services

   Services tab → + Add service. For each row below: fill Name and Host, set Authentication to the value in the Auth column. For Bearer rows, fill the Token (credential key) field with the credential name (e.g. GITHUB_TOKEN) and skip the substitutions section. For Passthrough rows, scroll to URL Substitutions, click + Add substitution, paste the placeholder, tick the surface boxes listed, select the credential. Save.

   Name	Host	Auth	Credential / Placeholder	Surface

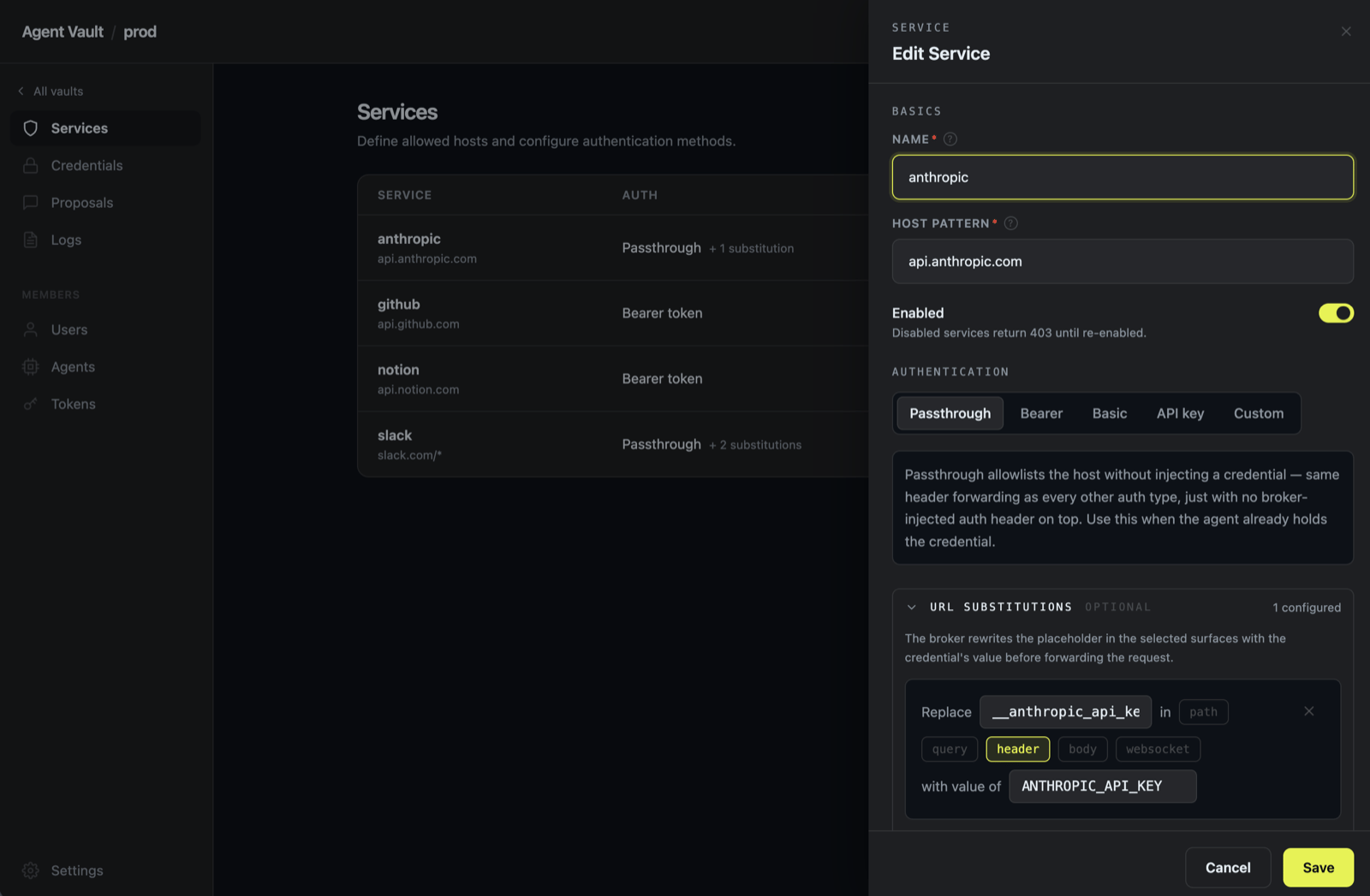

   anthropic	api.anthropic.com	Passthrough	__anthropic_api_key__ → ANTHROPIC_API_KEY	header

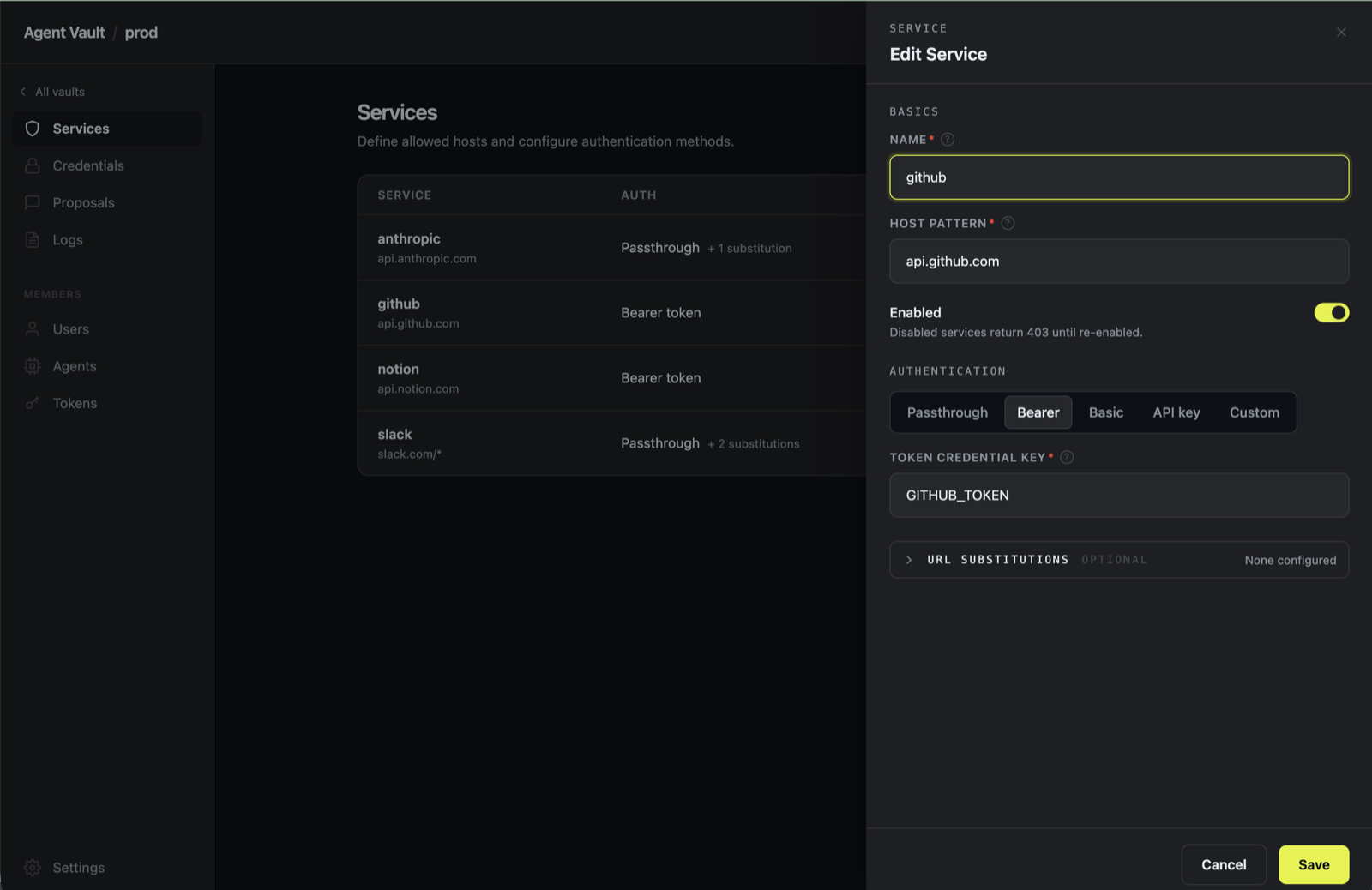

   github	api.github.com	Bearer	Token key: GITHUB_TOKEN	n/a
   notion	api.notion.com	Bearer	Token key: NOTION_TOKEN	n/a
   slack	slack.com/*	Passthrough	__slack_bot_token__ → SLACK_BOT_TOKEN	header, body



   The slack service carries a second substitution on the same service for the app token. After saving the first rule, click + Add substitution again on the same service:

   Placeholder	Surface	Credential
   __slack_app_token__	header, body	SLACK_APP_TOKEN

   Two auth modes appear above (Bearer for github/notion, Passthrough + substitution for anthropic/slack); see Services for how each one works and when to pick it.

   Slack ticks both header and body surfaces because @slack/web-api puts the bot token in the request body on its method-arg shape (client.auth.test({token})). Without body ticked, Bolt’s auth.test validation fails at boot and the bot silently stops responding to mentions.

For passthrough+substitution services, placeholder strings are exact-match. If Anthropic or Slack returns 401, check the failing request’s Credential keys field in the AV UI’s Logs tab; an empty value means the substitution didn’t fire (typo in the placeholder is the usual cause). Bearer services don’t have this concern: Agent Vault rewrites the Authorization header regardless of what the client sent.

5. Install OpenClaw on openclaw-box

1. SSH into openclaw-box and install the Agent Vault CLI

   In a fresh terminal on your laptop (leave the SSH tunnel to av-broker running):

   ssh -i ~/.ssh/digital-ocean-1 root@<openclaw-box-public-ip>
   curl --proto '=https' --proto-redir '=https' --tlsv1.2 -fsSL https://get.agent-vault.dev | sh


   On this box the Agent Vault CLI is a client wrapper; no server runs here.

2. Install OpenClaw and walk the setup wizard

   curl -fsSL https://openclaw.ai/install.sh | bash


   The installer drops OpenClaw at /usr/lib/node_modules/openclaw and launches its interactive setup wizard. At every token prompt, type the placeholder, not the real value. Exact strings matter; copy from this guide.

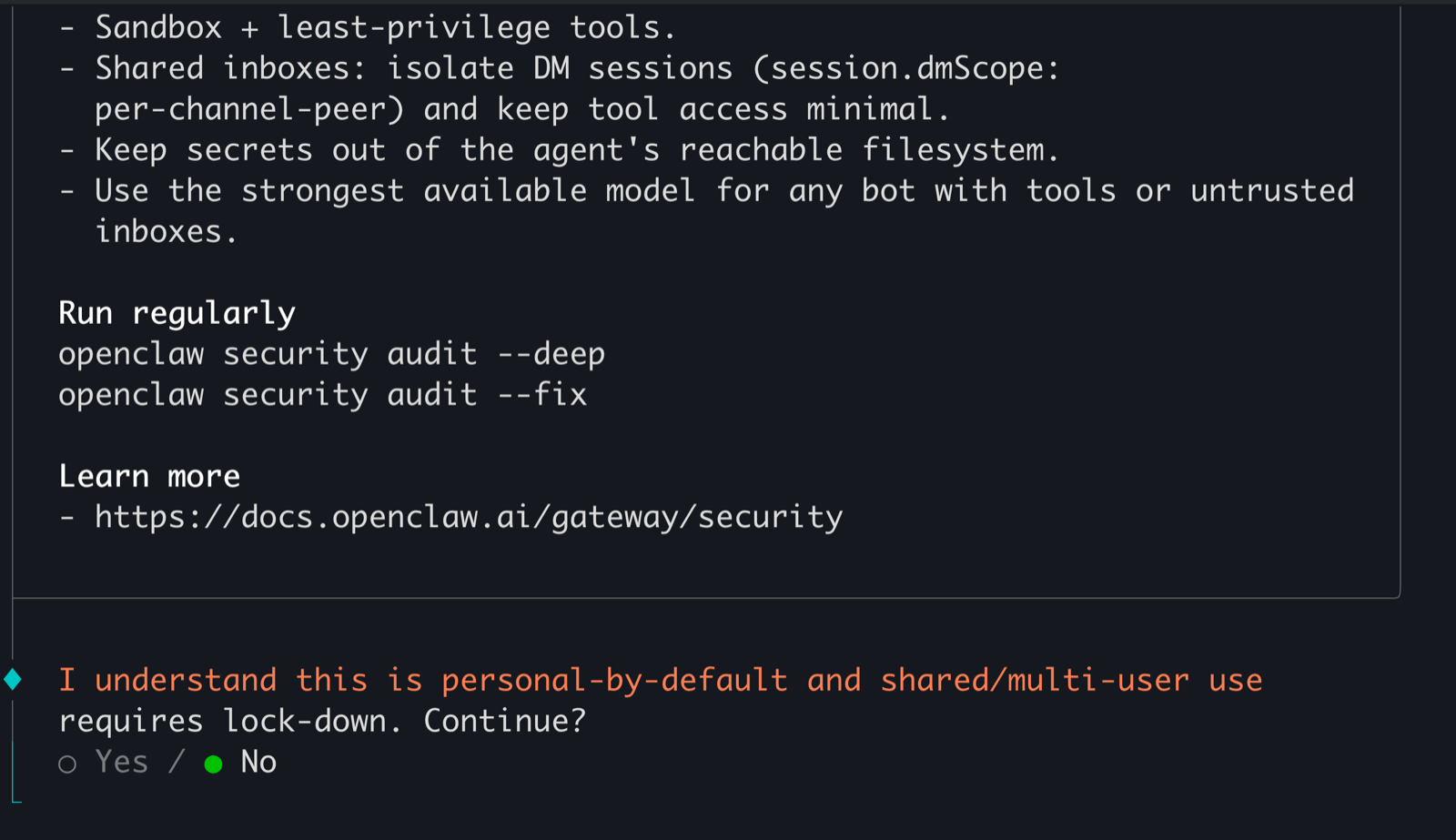

   1. Personal data acknowledgement → I understand.

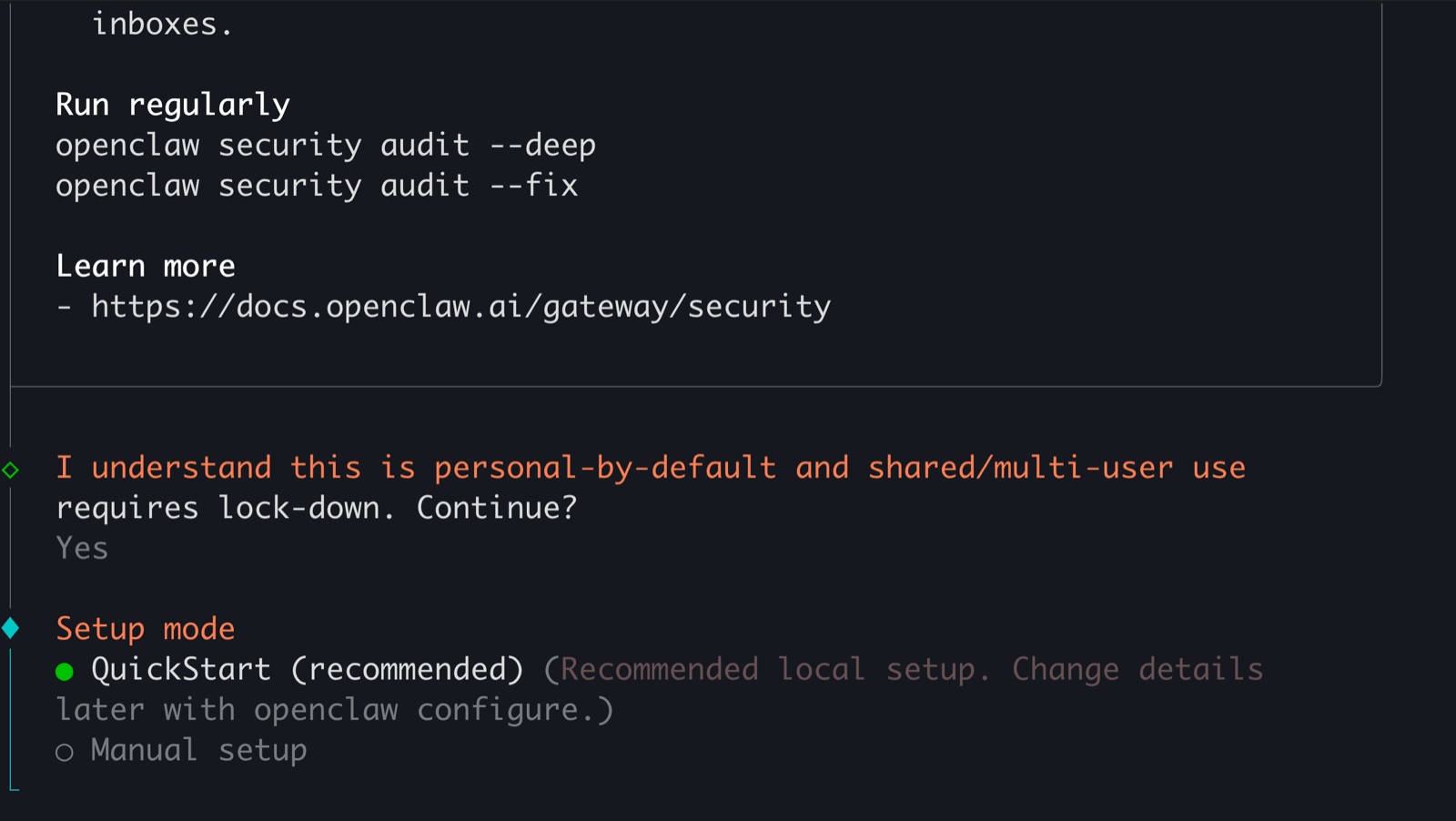

   2. Setup mode → Quickstart.

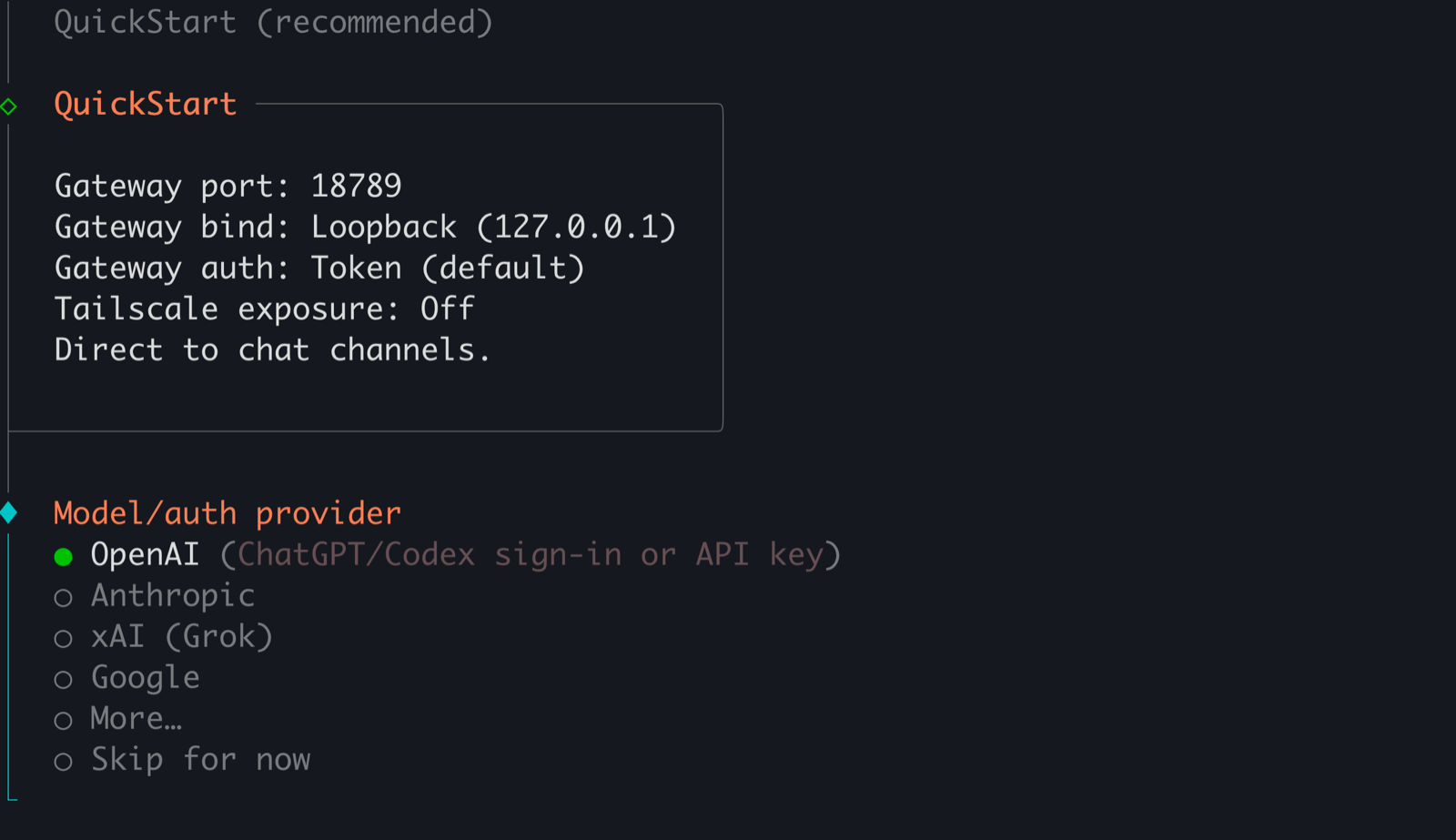

   3. Model provider → Anthropic.

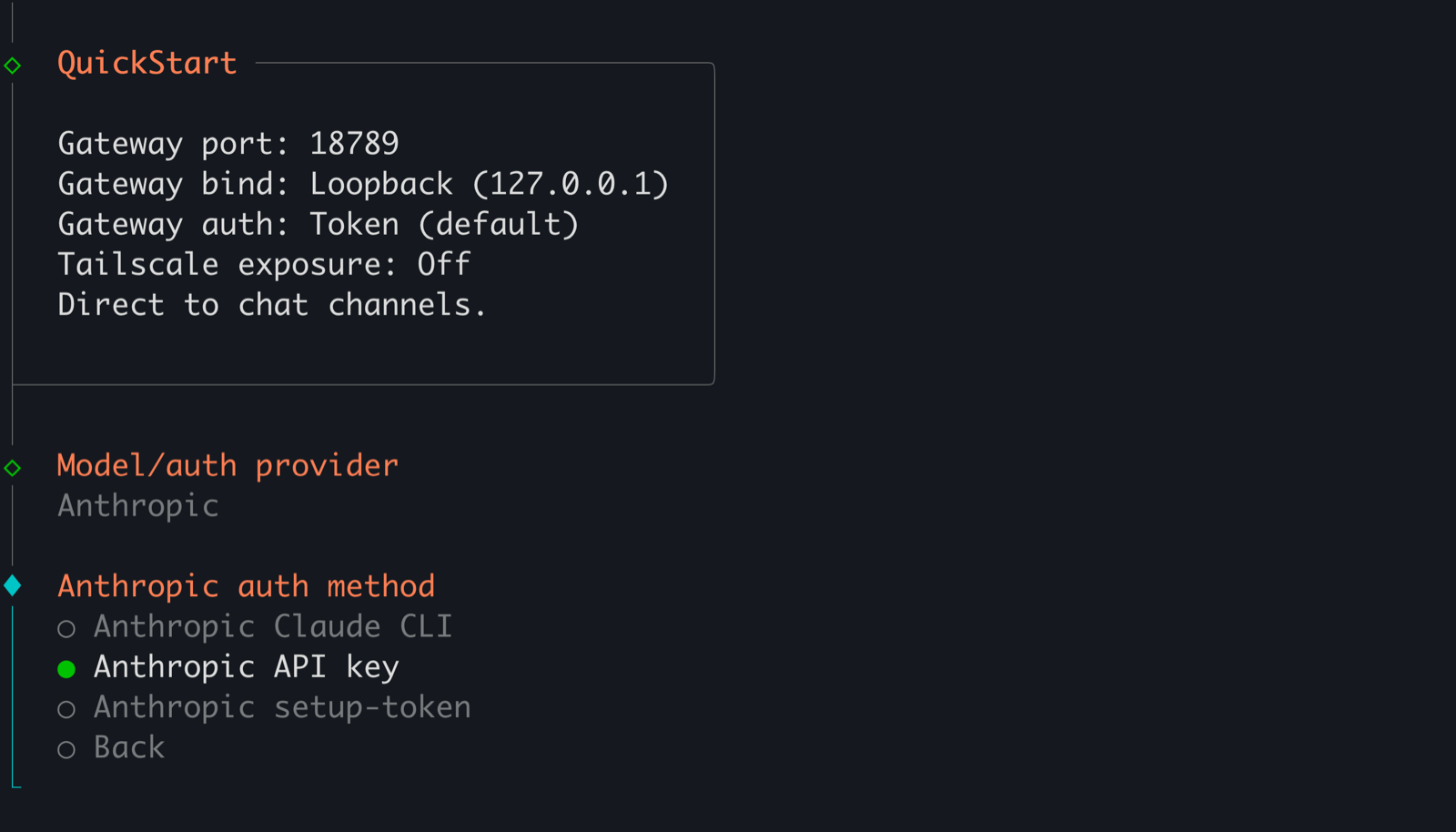

   4. Anthropic auth method → Anthropic API Key.

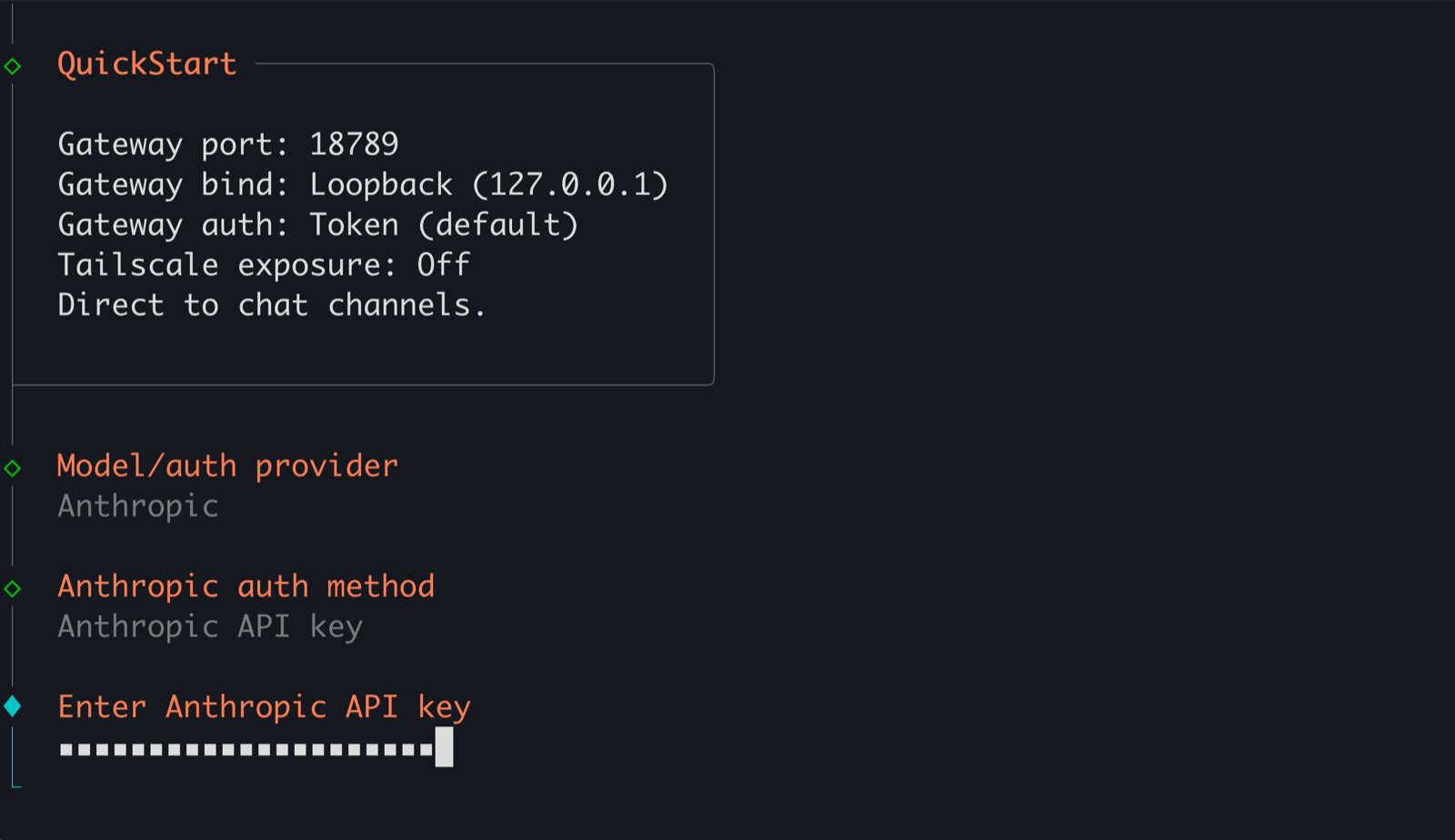

   5. Anthropic API key → __anthropic_api_key__.

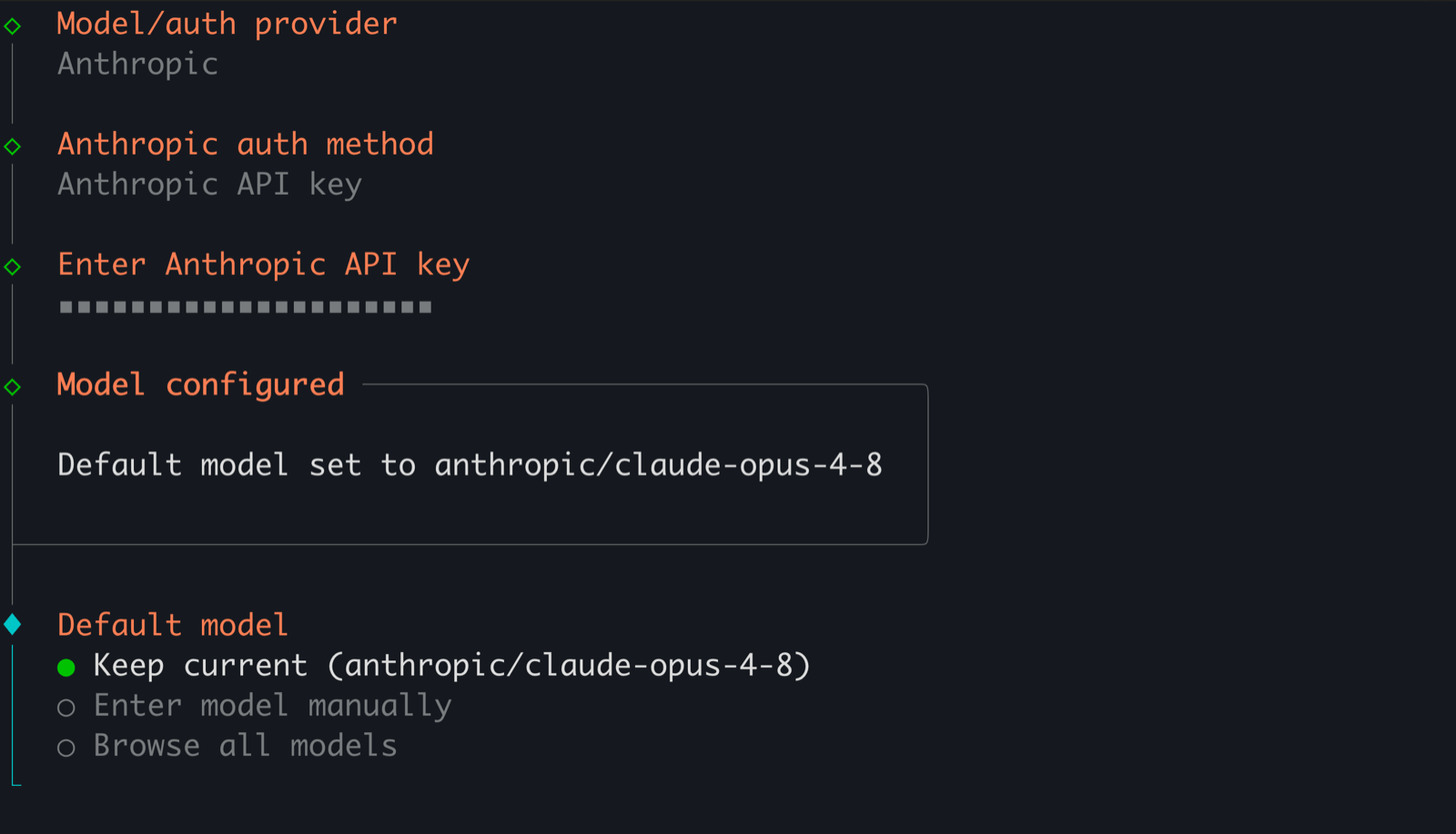

   6. Model → pick your preferred Claude model.

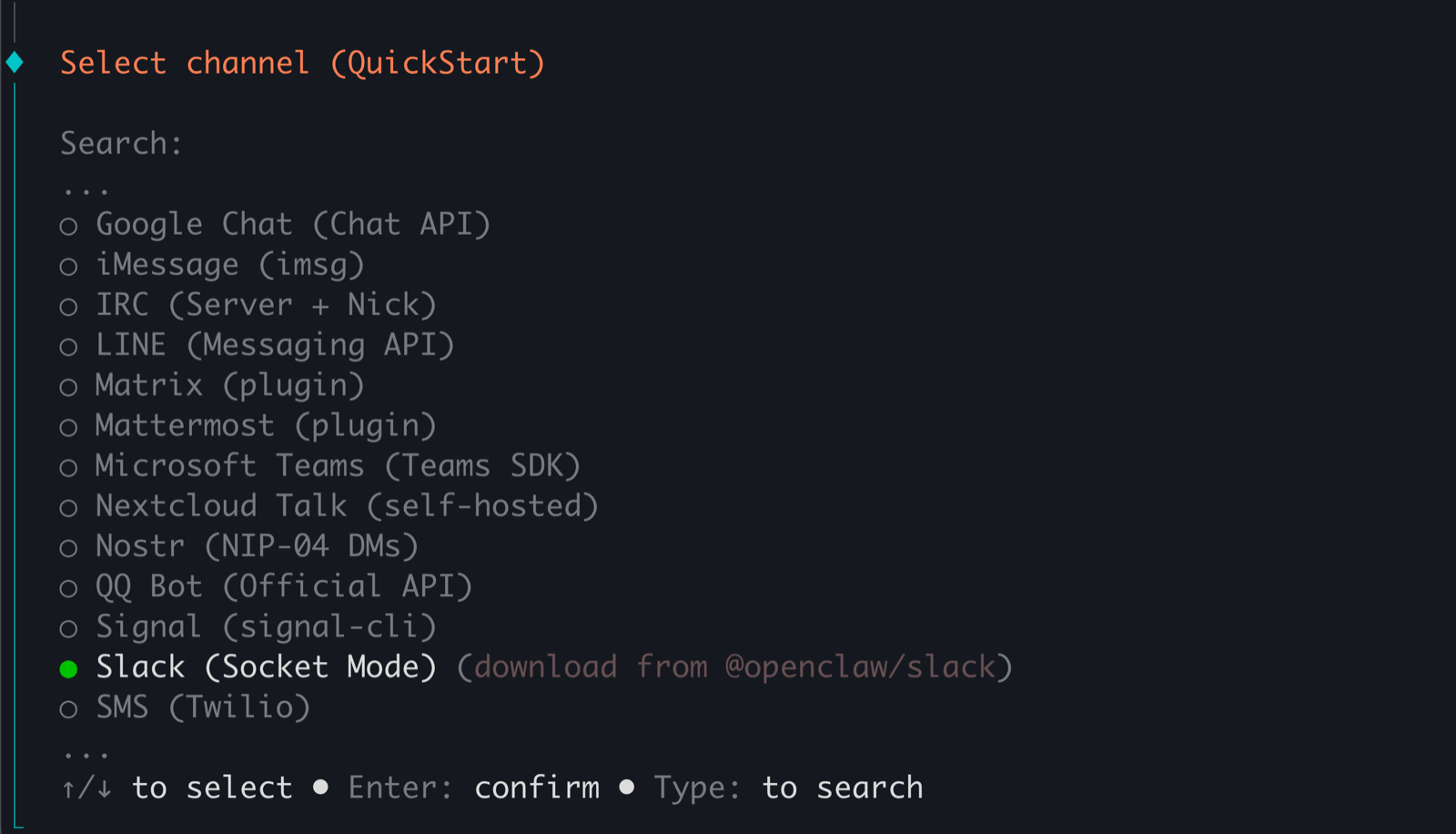

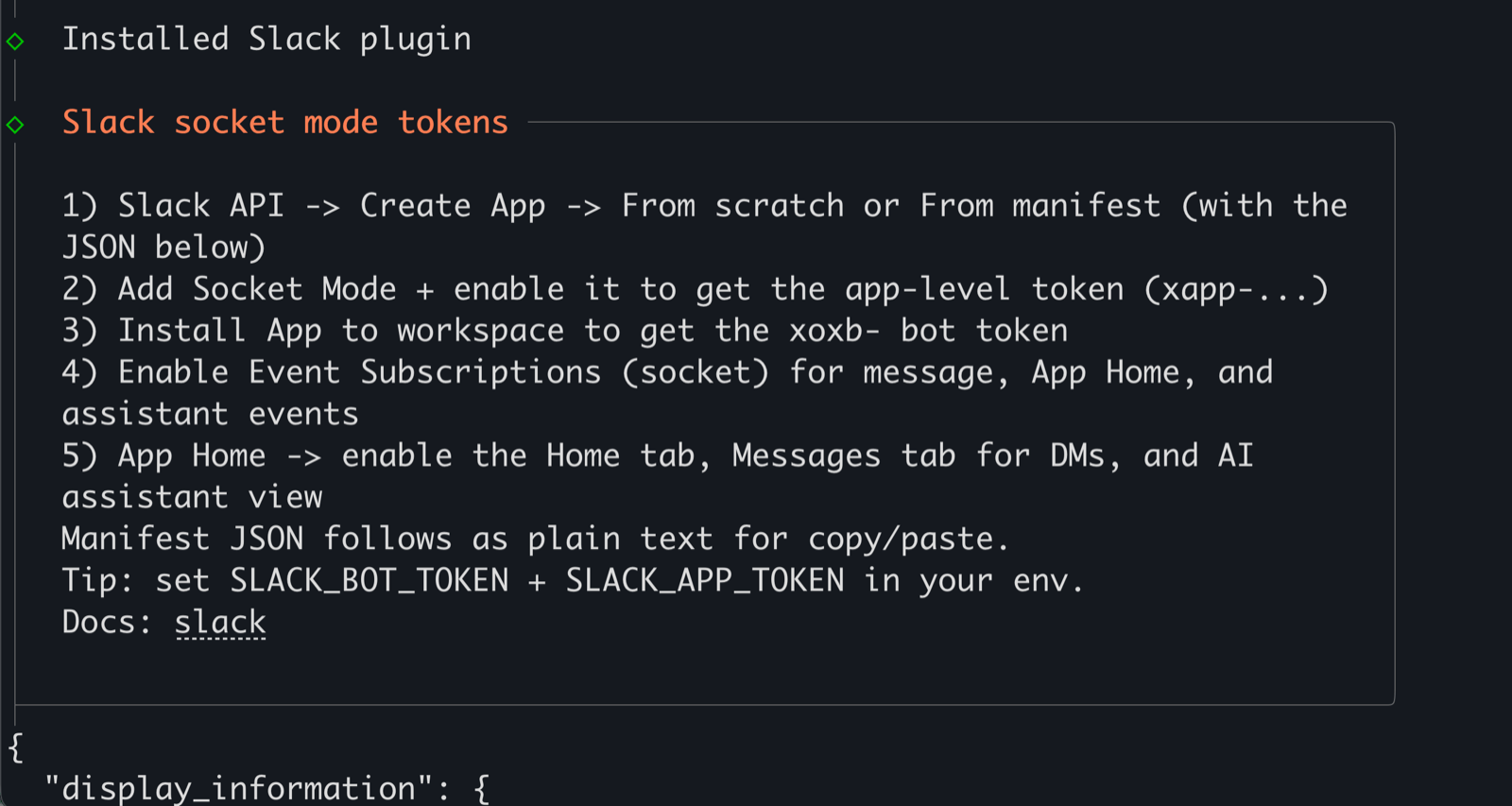

   7. Messaging platform → Slack (Socket Mode). The wizard then prints a Slack manifest JSON block; copy it for the next section.



   If you miss the manifest or re-run the wizard, it skips that step. Run openclaw channels remove slack then re-run the wizard to see it again.

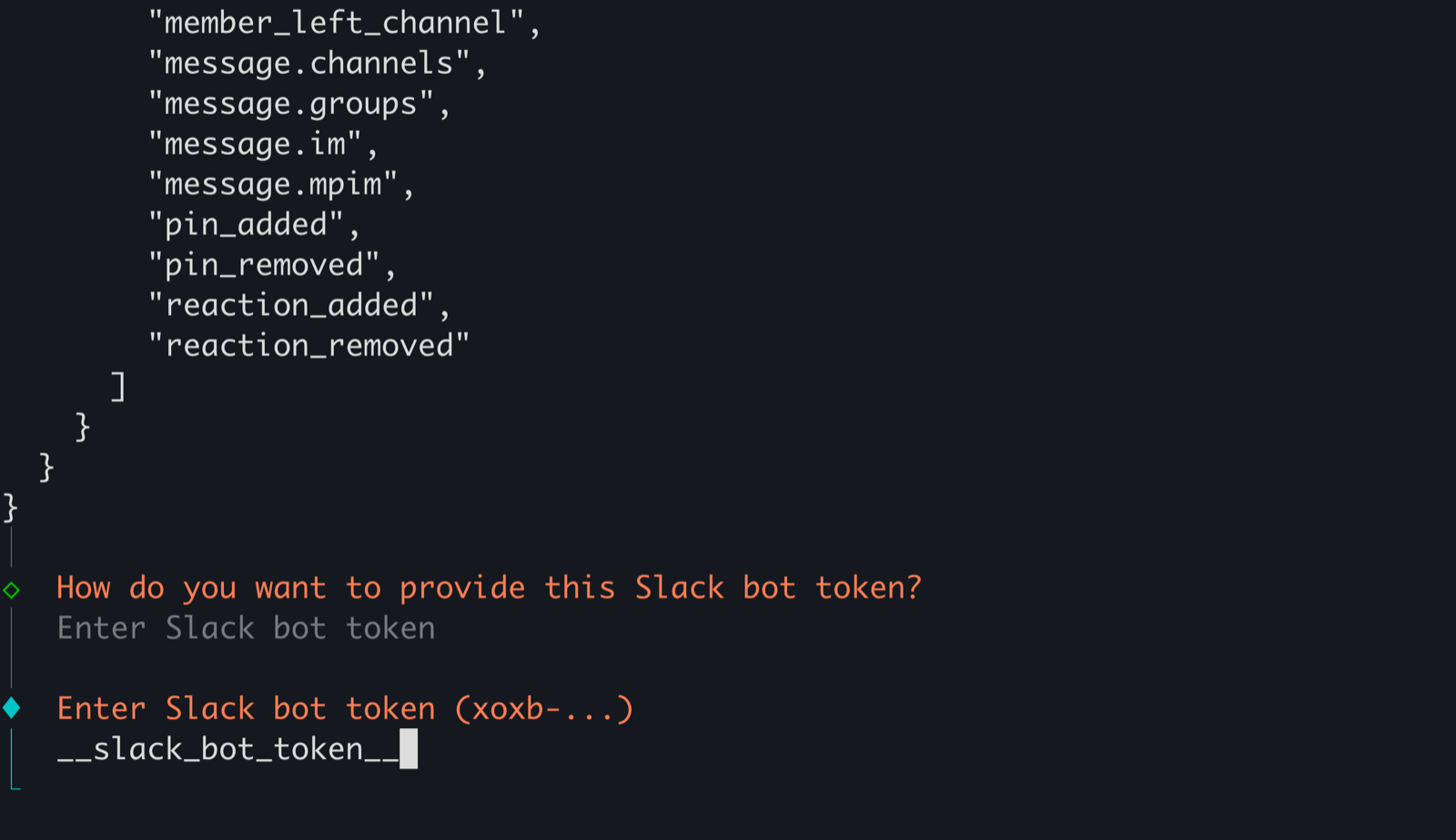

   8. Slack Bot Token → __slack_bot_token__.

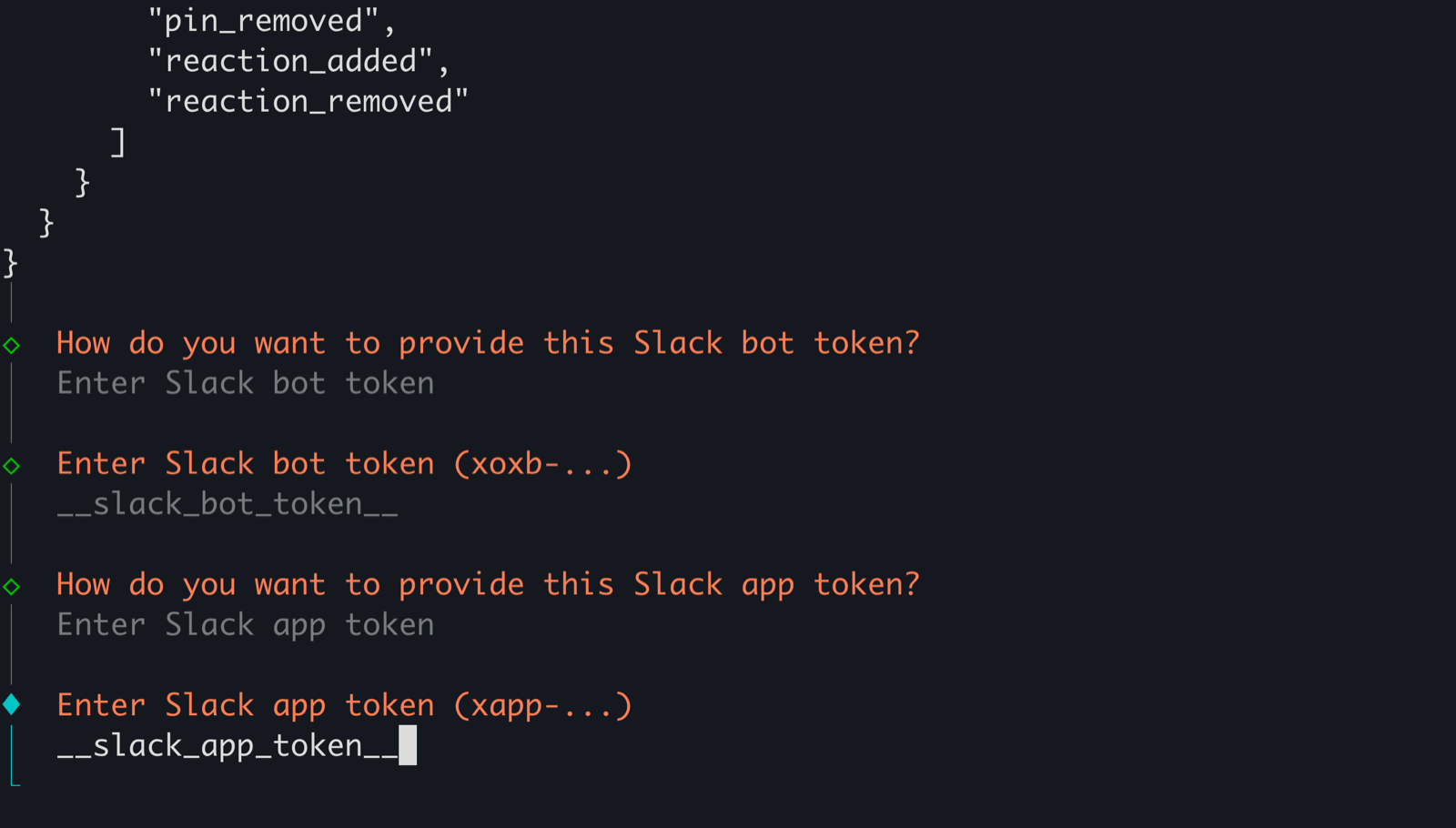

   9. Slack App Token → __slack_app_token__.

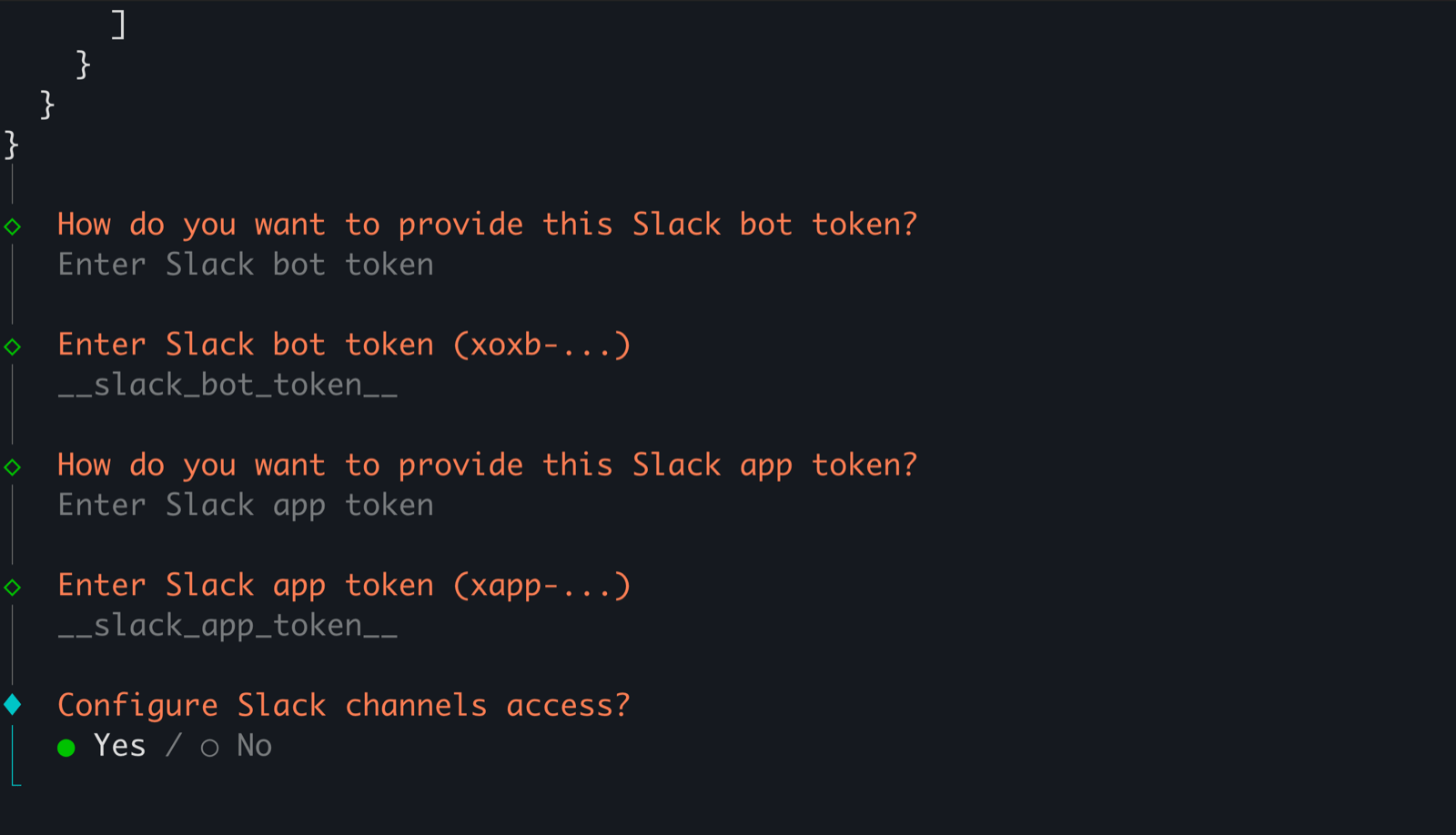

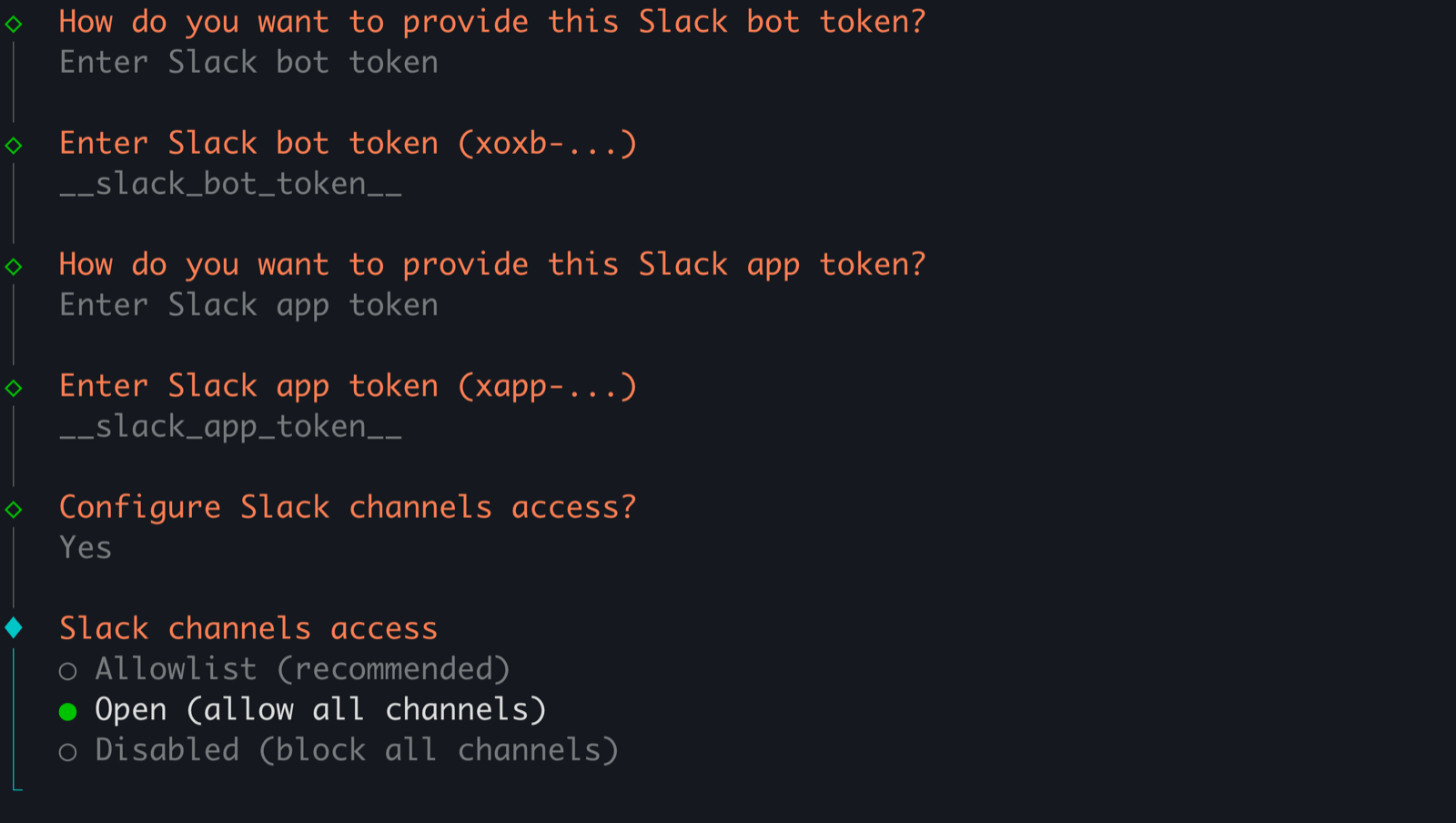

   10. Configure channel access? → Yes.



   11. Channel access → Open.

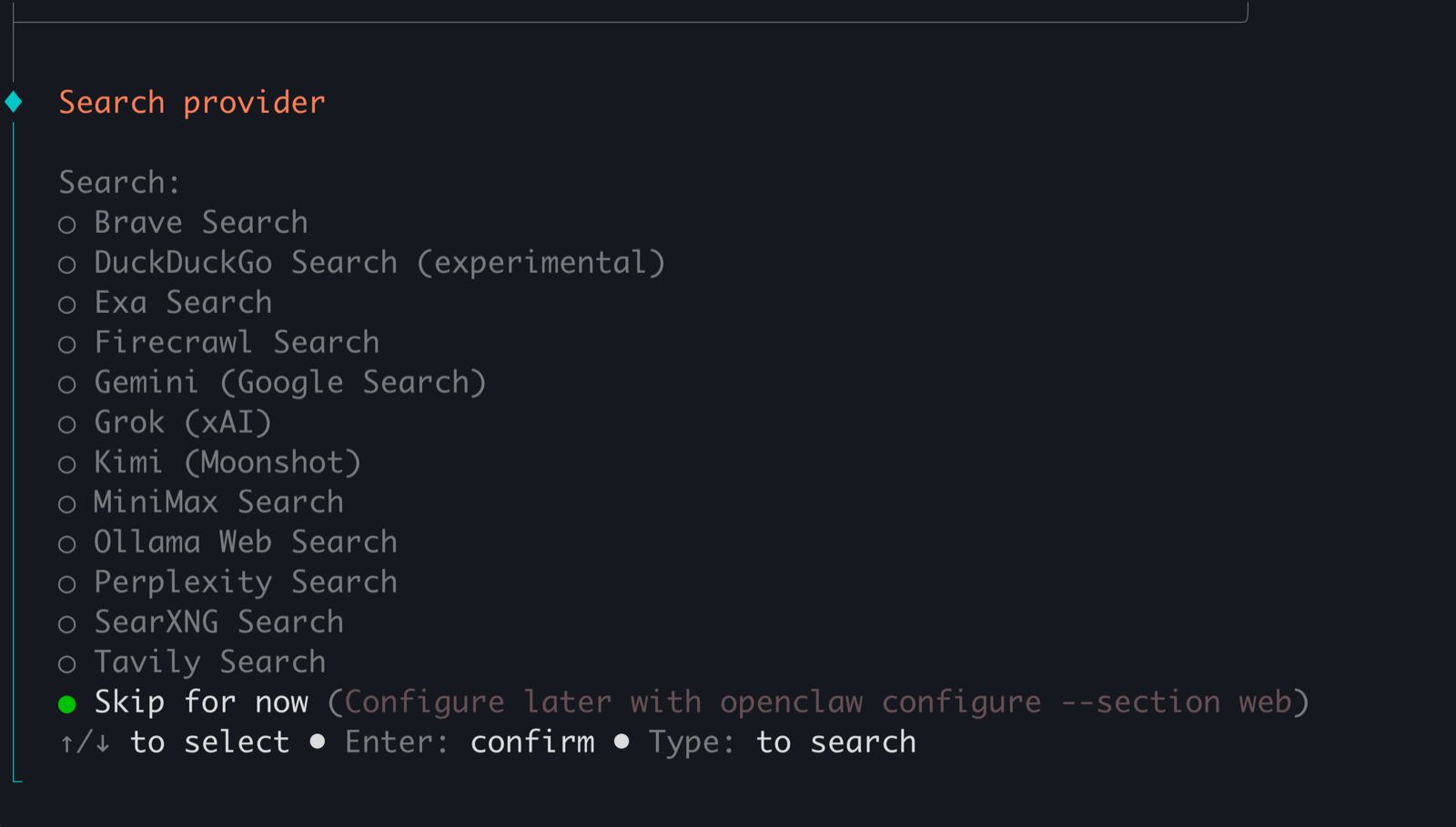

   12. Search provider → Skip.

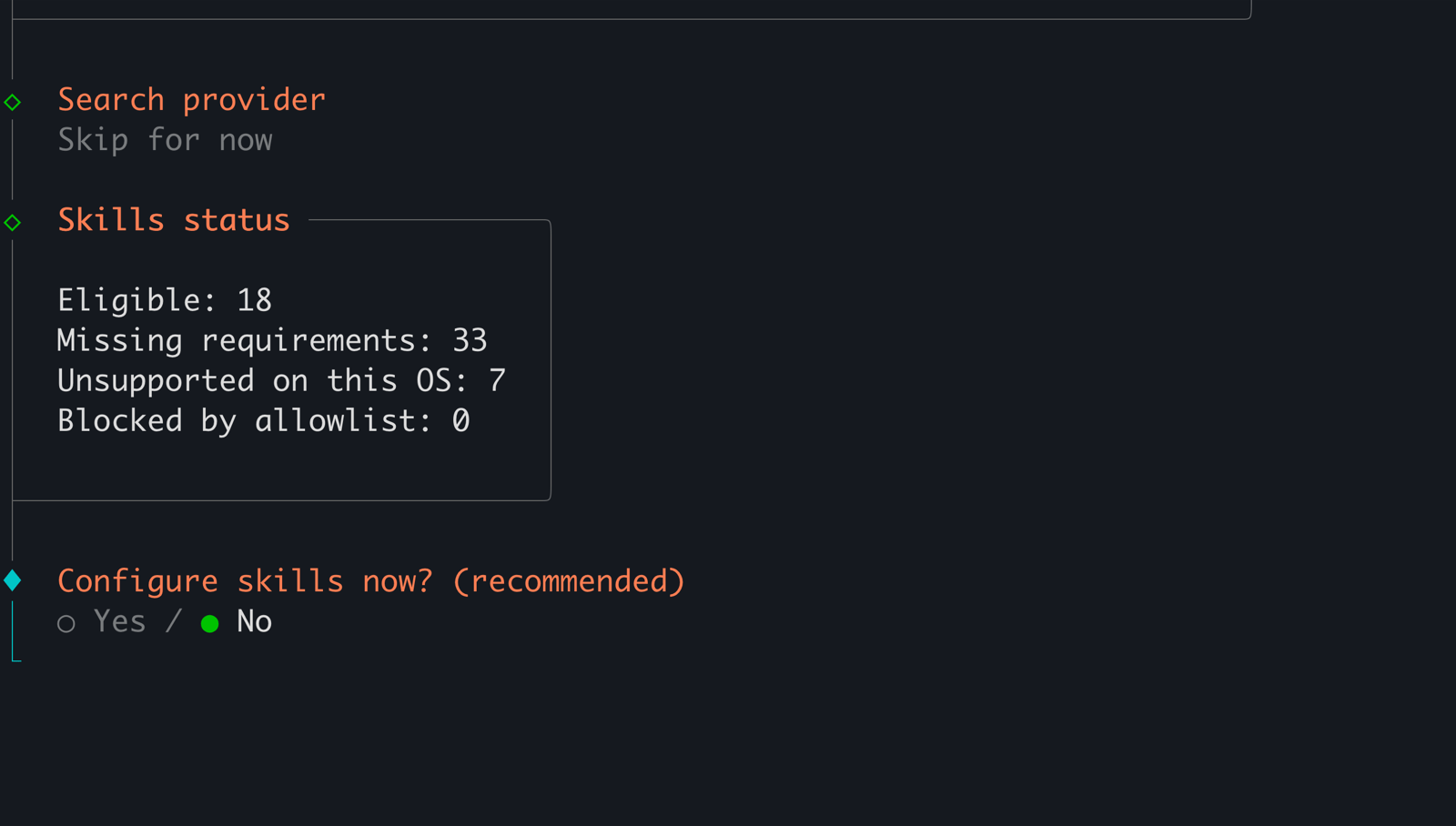

   13. Skills → No (skip).

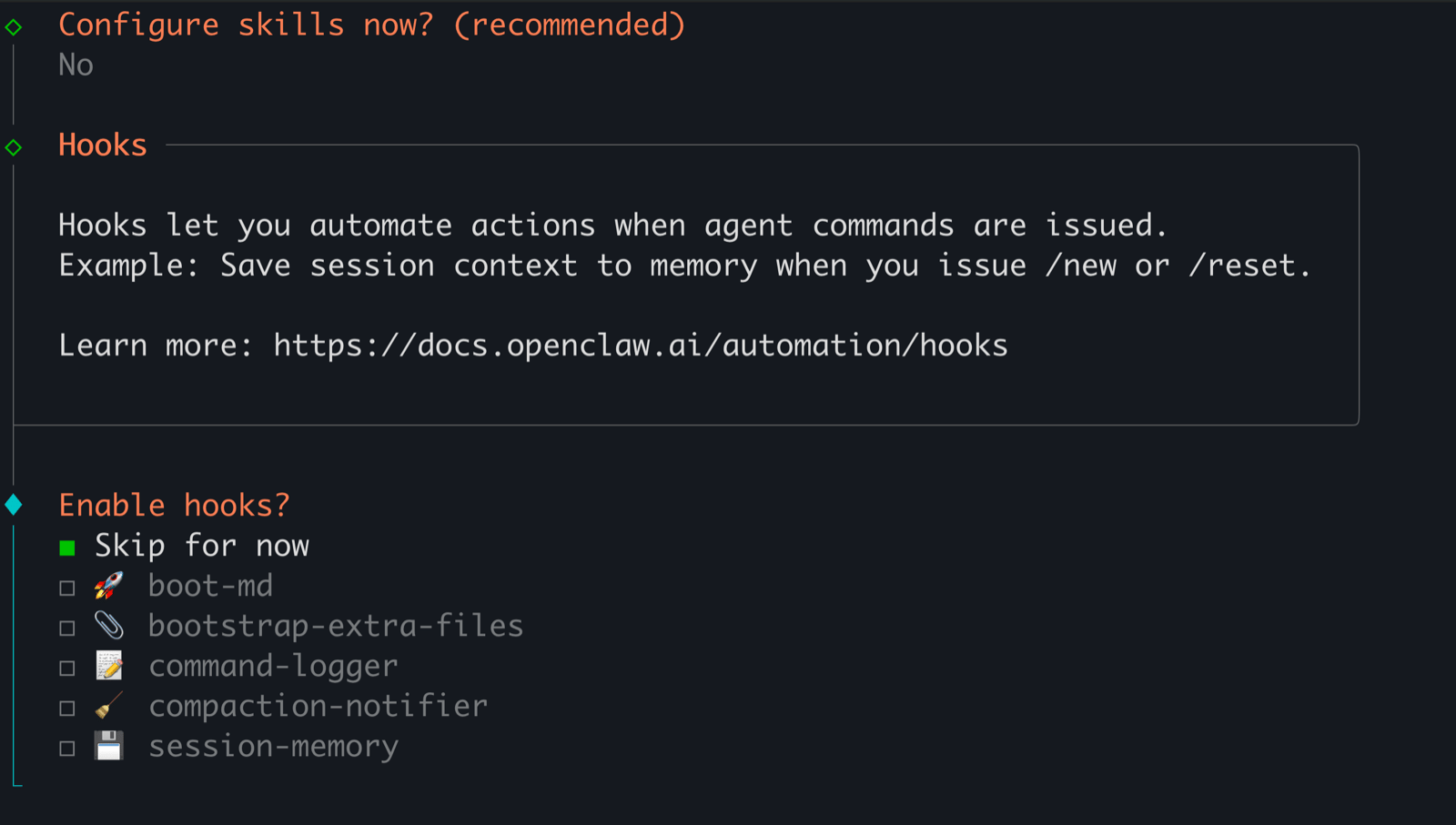

   14. Hooks → Skip for now.

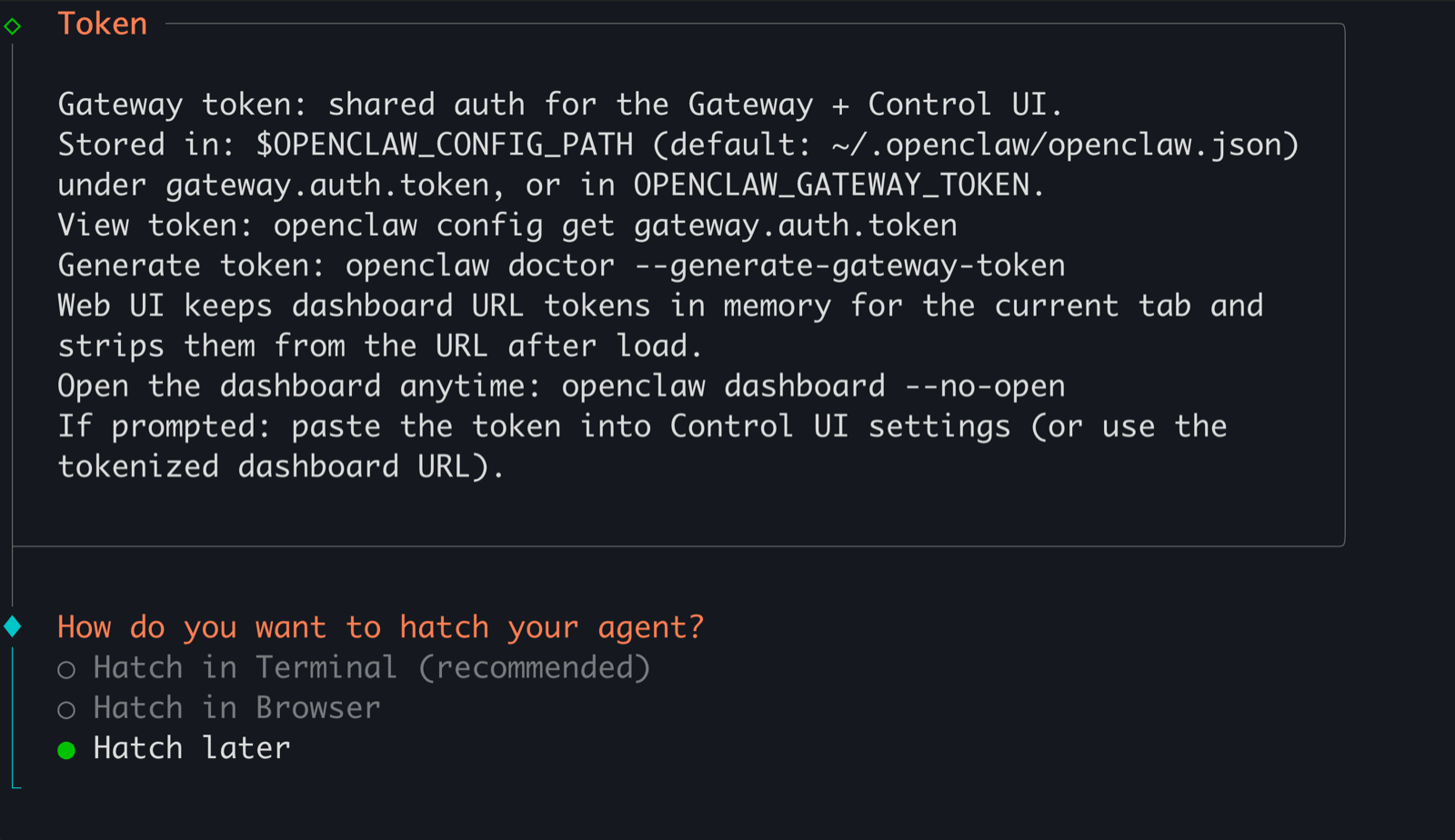

   15. Hatch agent in terminal? → No (hatch later).


3. Sanity-check the placeholders landed

   grep -R "__anthropic_api_key__\|__slack_bot_token__\|__slack_app_token__" ~/.openclaw


   You should see hits in ~/.openclaw/openclaw.json (Slack tokens) and ~/.openclaw/agents/main/agent/auth-profiles.json (Anthropic). If any are missing or mistyped, re-run the wizard.

6. Create the Slack app from OpenClaw’s manifest

OpenClaw’s manifest pre-configures every scope, event, and feature its Slack plugin needs. Pasting it into Slack’s “Create from manifest” flow provisions the app in one shot.

1. Create the app in Slack from the manifest

   Go to api.slack.com/apps, click Create New App → From a manifest, pick your workspace, paste the JSON, and click Create.

2. Install to your workspace and copy the bot token

   In the new app’s sidebar: OAuth & Permissions → Install to Workspace. Approve the scopes. Copy the Bot User OAuth Token (xoxb-...).

3. Generate the App-Level Token

   The manifest doesn’t cover App-Level Tokens. Basic Information → App-Level Tokens → Generate Token and Scopes, name it, add the connections:write scope, Generate, copy the xapp-... token.

4. Paste the real tokens into Agent Vault

   In the AV UI: prod → Credentials → SLACK_BOT_TOKEN → edit → paste the xoxb-... token → save. Then SLACK_APP_TOKEN → edit → paste the xapp-... token → save.

5. Invite the bot to your channel

   In Slack, open the channel you want OpenClaw to listen in. Type /invite @<your-bot-name>.

7. Connect openclaw-box to Agent Vault

agent-vault run wraps OpenClaw’s gateway so every outbound call goes through av-broker.

1. Mint an agent token

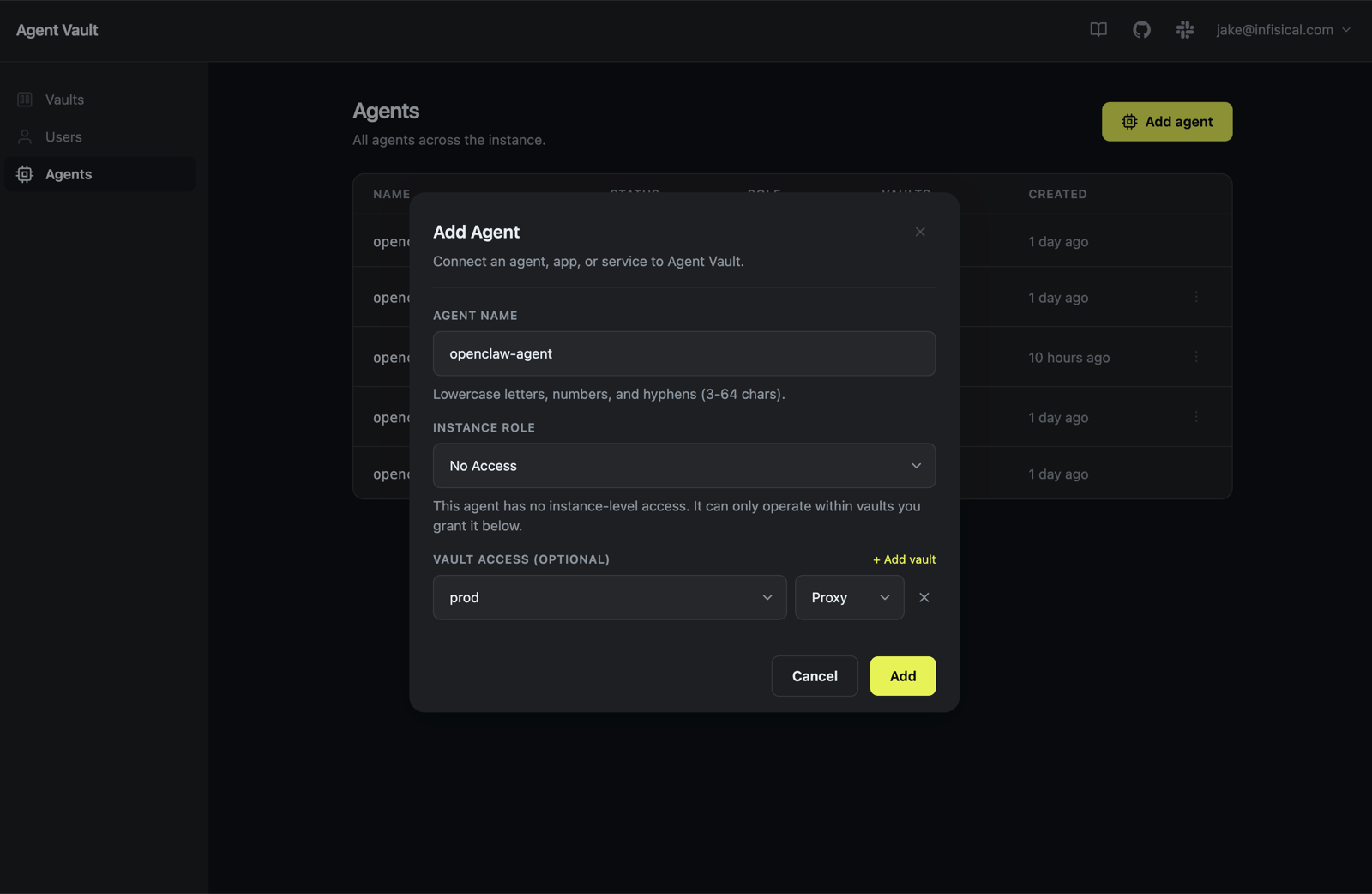

   Switch to the AV UI tab in your laptop browser. Sidebar: All Agents → Add agent.



   In the modal:

   • Agent name: openclaw-box

   • Vault access: click + Add vault, pick prod, leave role at proxy

   • Click Add



   The modal flips to the Connect Your Agent view with three values you’ll need: AGENT_VAULT_ADDR, AGENT_VAULT_TOKEN (the av_agt_... value), and AGENT_VAULT_VAULT. Copy all three. The address shown may point at localhost or your laptop’s tunnel; in the env file below you’ll substitute av-broker’s private VPC IP (e.g. http://10.108.0.3:14321) because openclaw-box reaches Agent Vault over the private network, not through your laptop’s SSH tunnel.


2. Write the env file on openclaw-box

   Back in the SSH session on openclaw-box:

   mkdir -p /etc/openclaw && cat > /etc/openclaw/agent-vault.env <<EOF
   AGENT_VAULT_ADDR=http://10.108.0.3:14321
   AGENT_VAULT_TOKEN=<paste-the-av_agt_-token>
   AGENT_VAULT_VAULT=prod
   GITHUB_TOKEN=__github_token__
   NOTION_TOKEN=__notion_token__
   EOF
   chmod 600 /etc/openclaw/agent-vault.env

3. Export the env vars into your shell

   systemd reads the file natively at gateway start, but a manual agent-vault run needs the vars in the current shell:

   set -a
   source /etc/openclaw/agent-vault.env
   set +a

4. Sanity-check the proxy path

   agent-vault run -- curl -H "Authorization: Bearer __github_token__" https://api.github.com/user


   A real GitHub user response means the placeholder was substituted on the wire and the proxy path works.

5. Write the systemd drop-in override

   Drop in an override that wraps the gateway’s ExecStart with agent-vault run:

   mkdir -p /root/.config/systemd/user/openclaw-gateway.service.d
   cat > /root/.config/systemd/user/openclaw-gateway.service.d/override.conf <<'EOF'
   [Service]
   EnvironmentFile=/etc/openclaw/agent-vault.env
   ExecStart=
   ExecStart=/usr/local/bin/agent-vault run -- /usr/bin/openclaw gateway run --port 18789
   EOF

6. Enable linger, reload, and start

   loginctl enable-linger root
   systemctl --user daemon-reload
   systemctl --user restart openclaw-gateway
   sleep 3
   journalctl --user -u openclaw-gateway -n 30 --no-pager


   Healthy log lines to look for in the first few seconds:

   • agent-vault: routing HTTP/HTTPS through MITM proxy (10.108.0.3:14322): the wrap is live.
   • [slack] socket mode connected: bot is on Slack via Socket Mode.
   • [gateway] provider auth state pre-warmed in <N>ms: Anthropic API key brokered successfully.
   • [gateway] ready: gateway accepting traffic.

8. Lock down egress (optional)

Restrict openclaw-box outbound to av-broker only. A compromised OpenClaw then has nowhere to exfiltrate.

1. Create and attach the egress firewall

   Networking → Firewalls → Create Firewall, name openclaw-egress. One outbound rule: TCP, destination 10.108.0.0/20 (your VPC range), any port.

   In Apply To Droplets, select only openclaw-box. Attaching this to av-broker breaks the brokered requests.

2. Verify

   From openclaw-box:

   curl --max-time 5 https://api.anthropic.com/v1/models


   That should time out. Proxied calls through 10.108.0.3:14322 still work.

9. Try it end-to-end

In your target Slack channel, @-mention the bot. OpenClaw replies, with every outbound call routed through 10.108.0.3:14322.

To exercise all four brokered services in one prompt:

@openclaw summarize the last 5 PRs in <owner>/<repo> and create a Notion page with the summary. Reply with the new page’s URL.

Replace <owner>/<repo> with a repo your GITHUB_TOKEN has read access to.

To watch brokered traffic in real time, tail the gateway journal on openclaw-box:

journalctl --user -u openclaw-gateway -f

Open Logs in the AV UI to see each request’s matched service and substituted credential.

10. Revoke and recover

1. Revoke the agent

   In the AV UI: All Agents → openclaw-box → Rotate (or Delete).

2. Send another Slack message

   The next outbound call returns 401 from the broker. The placeholder strings on openclaw-box are inert without a valid agent token.

3. Re-issue to recover

   Copy the rotated token, update AGENT_VAULT_TOKEN in /etc/openclaw/agent-vault.env, then systemctl --user restart openclaw-gateway. OpenClaw replies normally on the next @-mention. See Agents → Rotating an agent token.

Cleanup

1. DigitalOcean console → Droplets: delete av-broker and openclaw-box.
2. Networking → VPC: delete the VPC.
3. Firewalls: delete openclaw-lab and openclaw-egress (if you created it).
4. Rotate or revoke the real upstream API tokens you uploaded (they remain valid in their home services until you do).

Related

• Run Hermes on a VPS: the same brokering pattern with a Hermes Agent and Telegram bot on Hetzner Cloud.
• Connect a custom agent: same pattern for any agent that supports HTTPS_PROXY.
• Container isolation: local Docker isolation as an alternative to a remote VPS.
